Ground Floor House Plan with Drawing Living Room Kitchen-Hamam Area

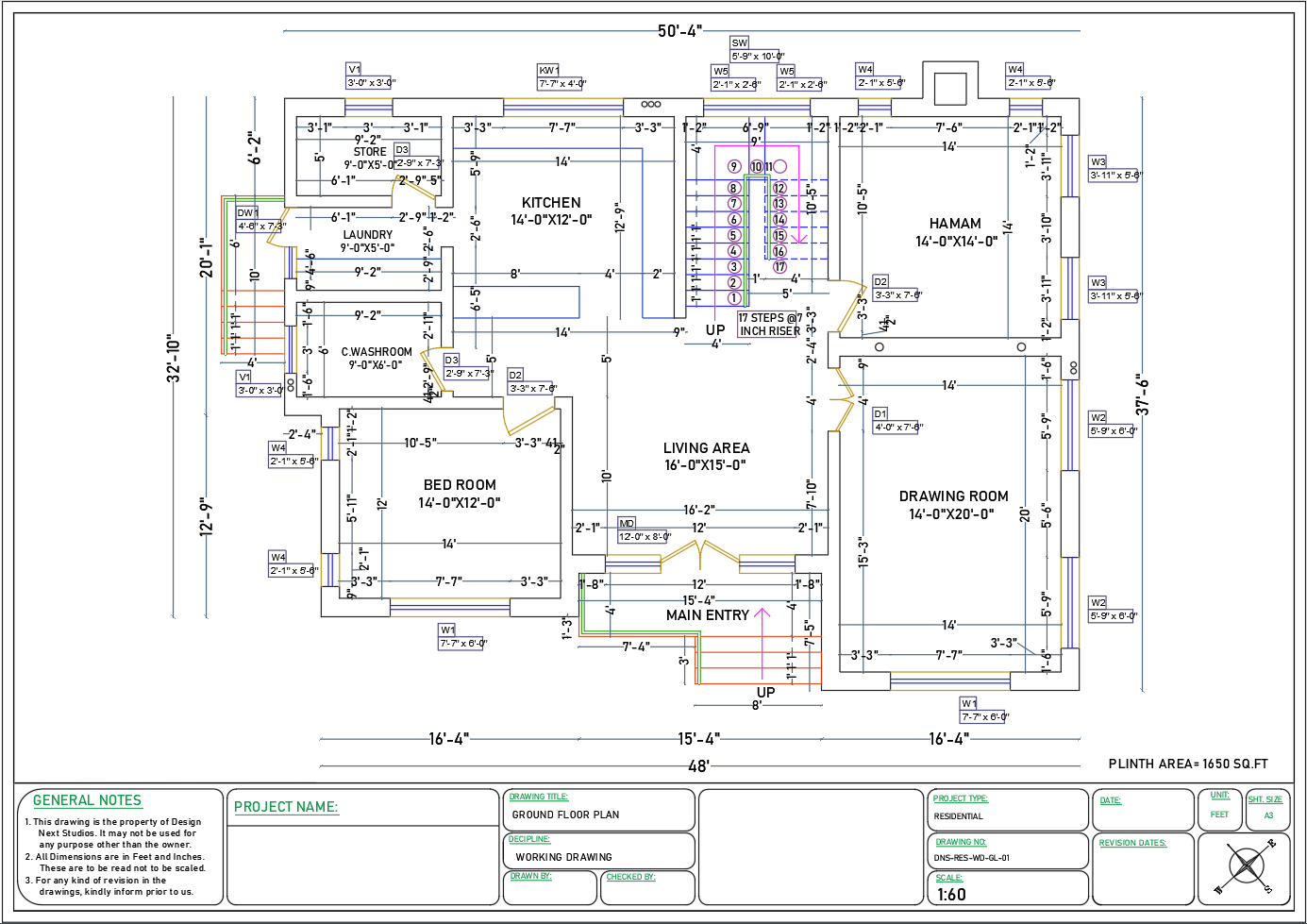

This AutoCAD DWG ground floor house plan covers a plinth area of 1650 sq.ft and includes clearly dimensioned living and utility spaces. The layout features a Drawing Room (14'-0" x 20'-0"), Living Area (16'-0" x 15'-0"), and Kitchen (14'-0" x 12'-0") with direct access to a Store Room (9'-0" x 5'-0") and Laundry (9'-0" x 5'-0"). The plan includes one Bedroom (14'-0" x 12'-0") along with a Common Washroom (9'-0" x 6'-0").

A notable feature is the Hamam Area (14'-0" x 14'-0"), designed for traditional bath usage. Circulation is supported by a Staircase with 17 steps @ 7" riser, and all doors and windows are dimensioned, including D1 (4'-0" x 7'-6"), D2 (3'-3" x 7'-6"), W1 (7'-7" x 6'-0"), and W4 (2'-1" x 5'-6"). The plan includes general notes and not-to-scale dimension instructions for site execution.

This layout serves architects, civil engineers, interior designers, and builders planning residential ground level construction.
