Ground Floor House Plan with Bedrooms Study Pantry Alfresco and Lounge

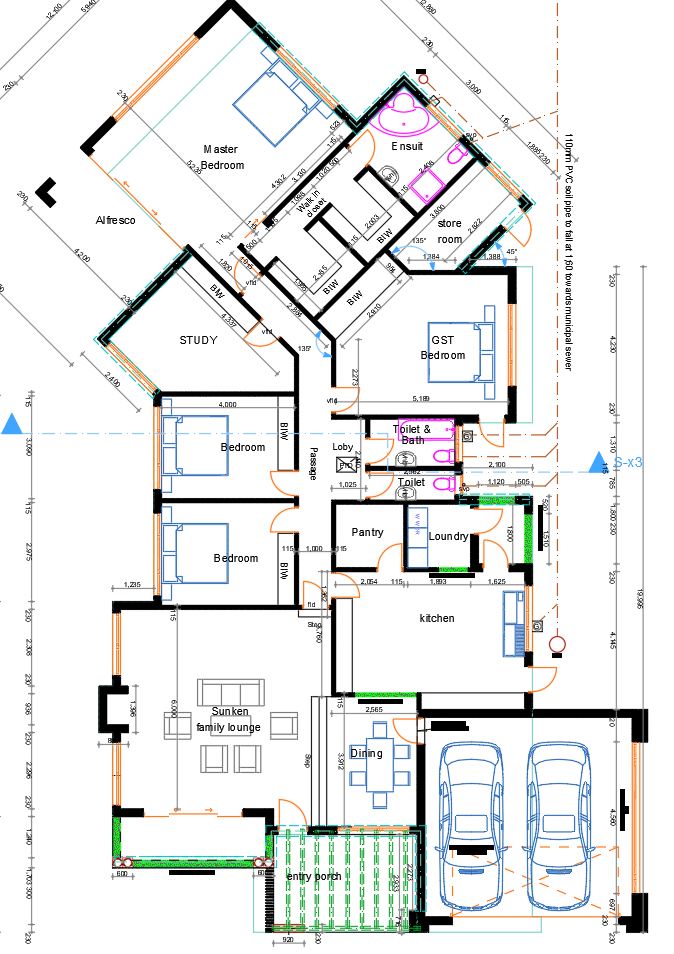

This AutoCAD DWG ground floor house plan includes a well-organised layout featuring a Family Lounge, Dining Area, Kitchen, Pantry, Laundry, Study Room, and multiple Bedrooms. The Master Bedroom includes an Ensuite Washroom and a Walk-In Closet, while additional bedrooms are connected through a Common Passage for smooth circulation. A covered Alfresco Area is placed near the dining and lounge space, extending indoor living to the outdoor patio.

The plan also includes a Store Room, Toilet & Bath, Separate WC, and detailed Door/Window placements, along with step levels, RC beam positioning, and fire-rated entry door notes. All wall thicknesses, internal clearances, and plumbing pipe routes are shown for precise construction reference.

This drawing is suitable for architects, civil engineers, interior designers, and builders working on residential floor layout development.
