Residential Township Layout with Amenities and Sports Zone Plan DWG

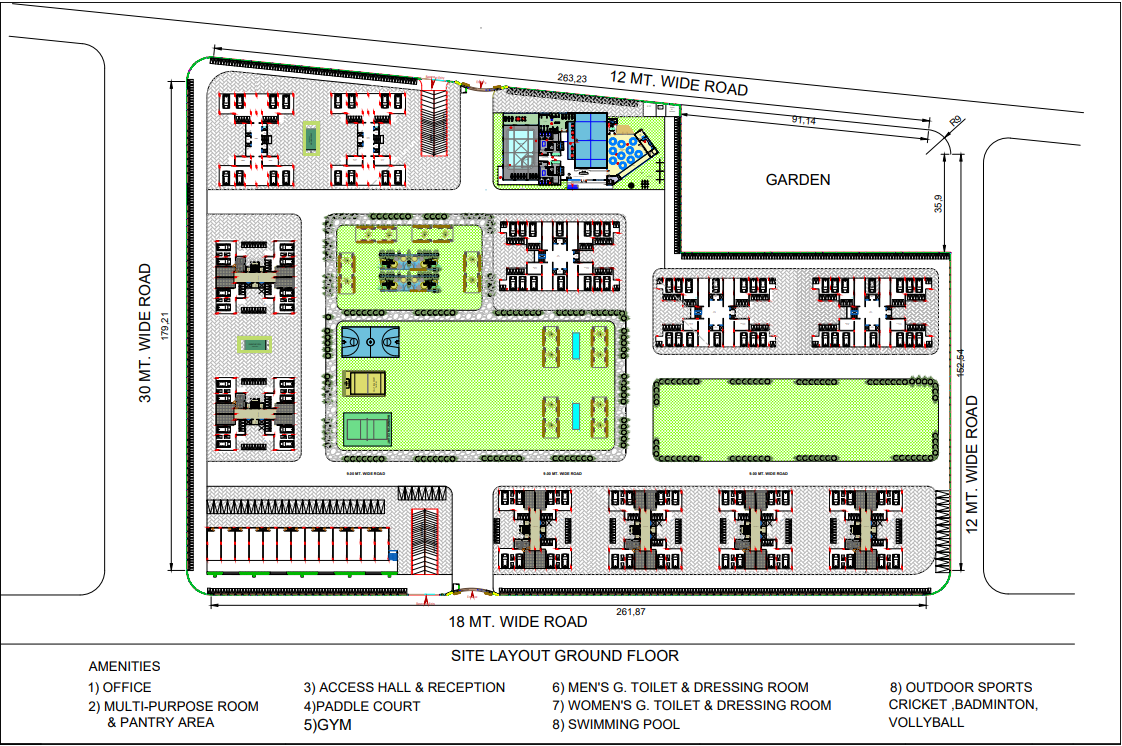

This AutoCAD DWG site layout plan represents a complete residential township arrangement designed with clear movement, zoning, and organized access. The site is bordered by 30 mt., 18 mt., and 12 mt. wide roads, providing structured entry and smooth internal circulation for residents and service vehicles.

The residential units are distributed in building clusters, each arranged with internal pathways, open spaces, and buffer landscaping. These blocks are positioned to optimize light, ventilation, and pedestrian access, creating a comfortable residential environment supported by efficient movement corridors.

A central amenity zone is planned to include an office, access hall and reception, multi-purpose room with pantry, and a gym, ensuring essential community support facilities. The layout also features a swimming pool along with separate men’s and women’s toilet and dressing rooms, providing complete recreational convenience.

Outdoor recreation spaces are integrated into the township, including designated children’s play areas and multiple sports courts such as paddle court, cricket training space, badminton, and volleyball courts. These open activity zones encourage healthy community interaction and active lifestyles.

The carefully arranged garden areas, circulation routes, and building placements ensure balanced spatial planning, making this layout suitable for detailed architectural development, planning submission, and site execution.
