House Architectural Plans with Elevations Sections and Details DWG

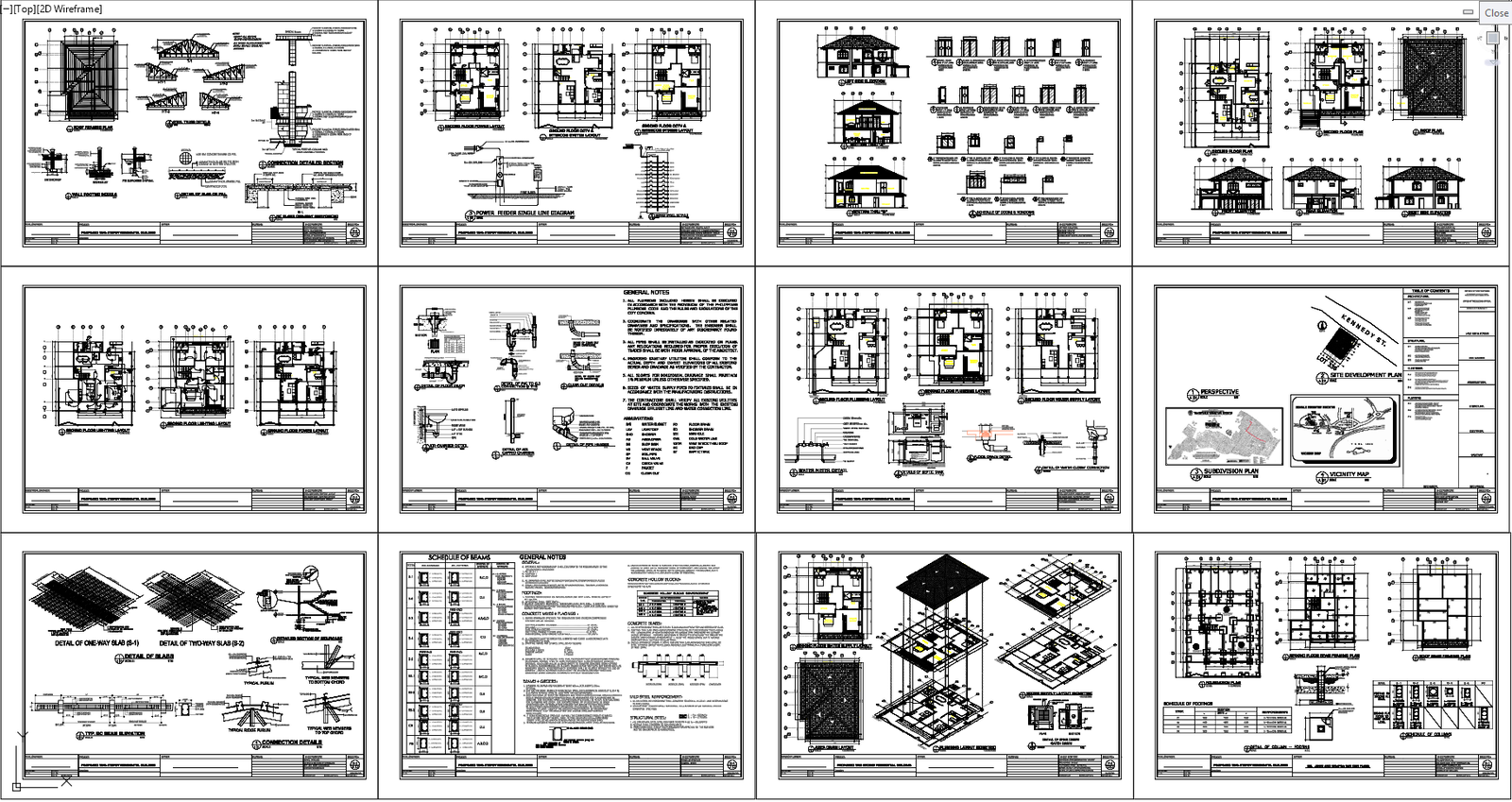

This AutoCAD-DWG architectural drawing set contains the full construction documentation for a residential house project. The Ground Floor Plan and Second Floor Plan show the room layout, wall partitions, stair positioning, door swings, and window placements required for precise spatial planning. Each floor level includes dimensioning references to support accurate site execution.

The front, rear, and side elevations illustrate the external building appearance, roof slope, façade treatments, window arrangement, and structural alignment. The sectional drawings provide vertical height details, slab-to-slab levels, foundation depth, and stair rise and tread configuration.

A series of construction and structural details are included, such as footing layout, one-way and two-way slab reinforcement, truss details, beam-column junctions, and roof connections, ensuring material and assembly clarity. Plumbing and sanitary line diagrams, electrical layout, and water drainage notes support building service coordination.

Additional sheets include a door and window schedule, site development plan, vicinity map, and a 3D exploded view for visual understanding of the building assembly. This set is suitable for architects, civil engineers, builders, and drafting professionals preparing working drawings and construction documentation.
