Residential Apartment Layout with Shops Parking and Floor Plans

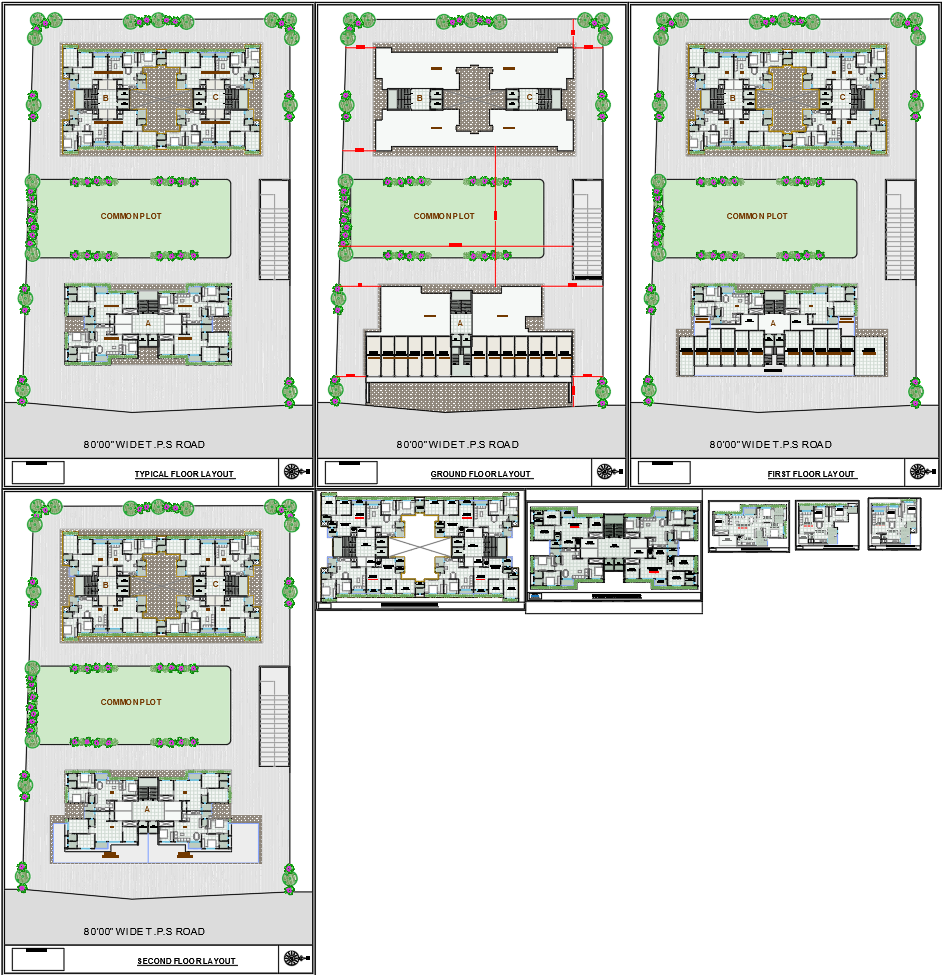

This AutoCAD-DWG layout represents a multi-block residential apartment development planned along an 80’-0” wide T.P.S. road. The planning incorporates a central common plot for open recreational use, surrounded by building blocks arranged with clear pedestrian and vehicle circulation routes.

The Ground Floor Layout includes a series of commercial shops with widths ranging approximately from 9’-0” to 10’-5” and depths of 23’-8” to 27’-0”, positioned along the road frontage for accessibility. Internal circulation includes 7’-0” wide passages, lift cores measuring 6’-6” x 8’-0”, and staircases providing vertical movement.

The First Floor Layout accommodates parking areas, lift lobbies, and access zones overlooking the common open plot. This level ensures separation of vehicular flow from residential entry points.

The Typical Floor Plans (Block A, B & C) show 3BHK and 2BHK units. A typical 3BHK unit includes a Living/Dining area (19’-0” x 14’-0”), Bedrooms ranging from 10’-0” x 10’-2” to 14’-0” x 10’-0”, Kitchen (10’-0” x 7’-0”), Wash area (7’-6” x 5’-0”), and Balcony (9’-0” x 4’-9”). A typical 2BHK unit includes a Living room (10’-0” x 15’-6”), Kitchen/Dining (9’-7” x 14’-6”), Bedrooms (10’-0” x 10’-0” & 13’-0” x 10’-0”), and attached toilet areas.

All unit layouts are supported with pocket foyers (approx. 6’-4” x 6’-10”), store rooms, wash areas, and independent balcony access, making the apartments functional and suitable for daily living needs.
