Three Storey Residential House CAD Plan with Sections and Elevations

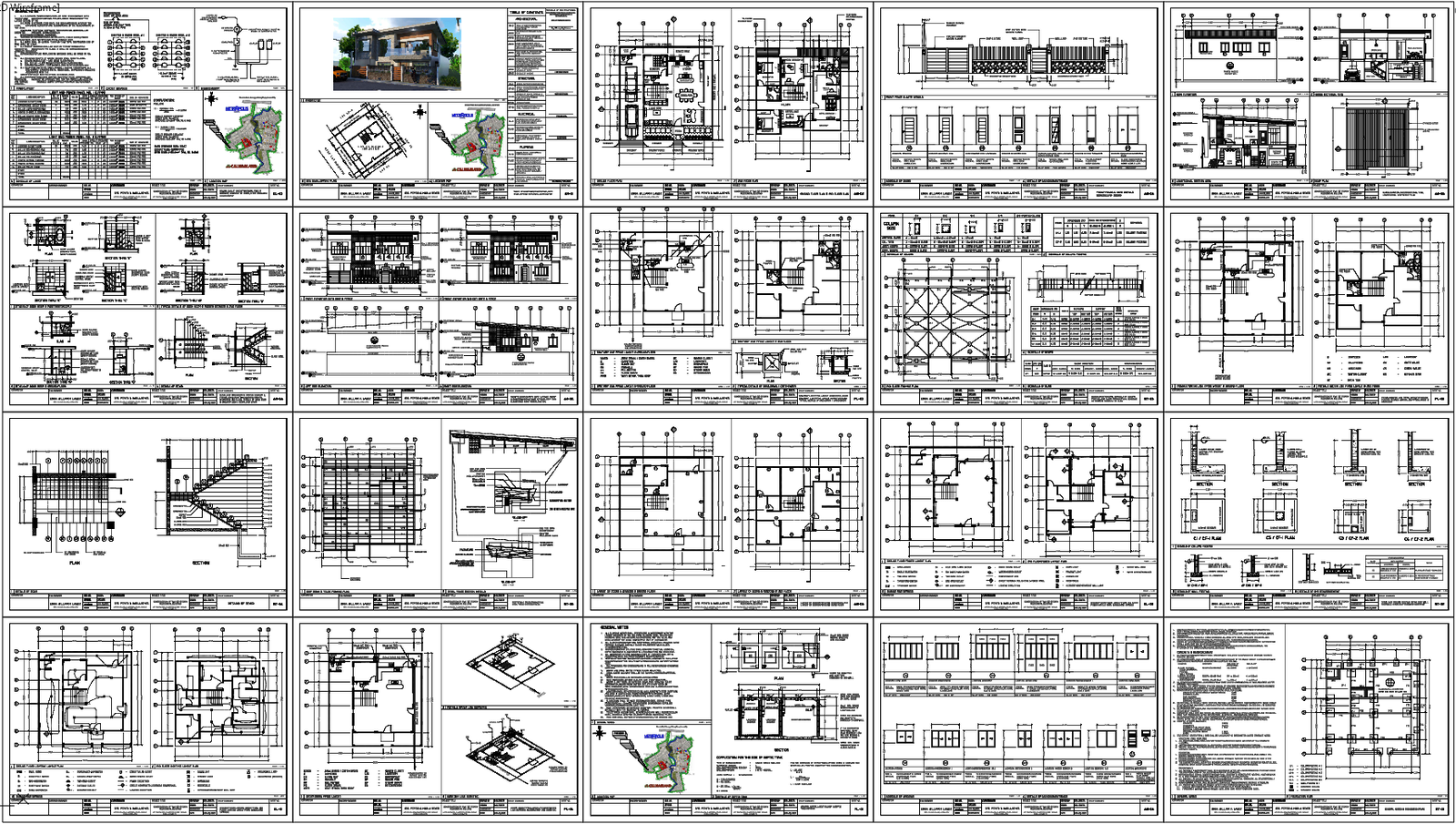

This DWG file contains a complete architectural plan for a three-storey residential house, including detailed floor layouts, structural drawings, foundation layout, and beam and slab reinforcement details. The ground floor plan shows the living room, kitchen, dining space, wash area, staircase placement, entrance circulation and primary service zones.

The first- and second-floor plans clearly illustrate dimensioned bedrooms, attached and common toilets, balconies, family spaces, and circulation corridors. Each level is labeled and coordinated with grid references and column locations for easy construction execution.

The drawing also includes front and side elevations, sectional views, slab reinforcement layouts, footing details, staircase section, window and door schedules, and material specifications. These drawings support accurate site implementation, quantity estimation, and interior space planning by architects, engineers, and contractors.
