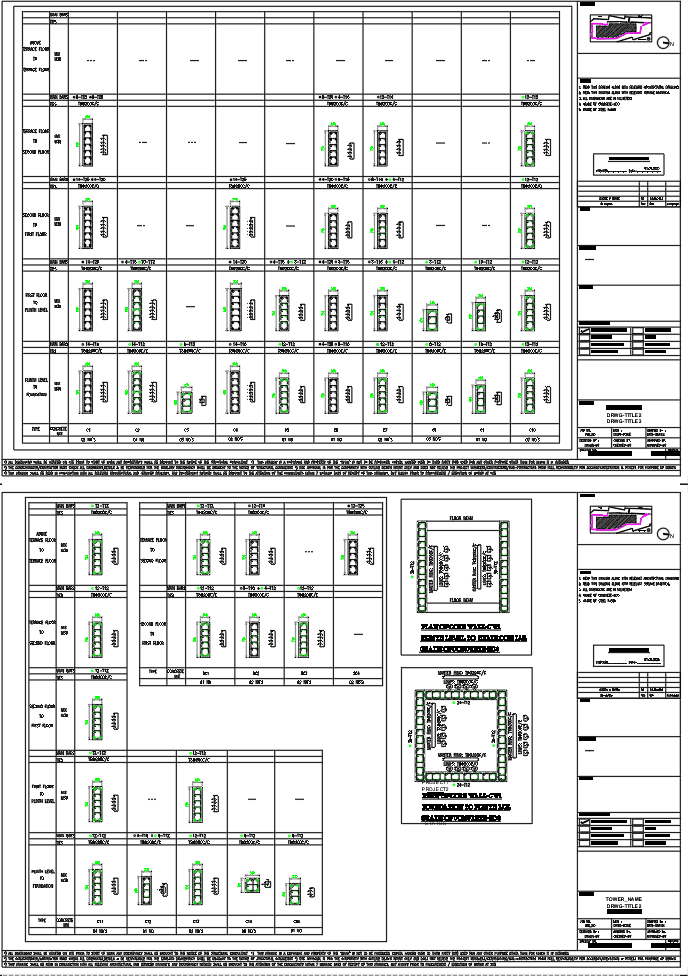

Reinforced Concrete Column Schedule With Footing Details DWG Drawing

This AutoCAD DWG file provides a complete reinforced concrete column schedule designed for structural construction projects. It includes column sizes, reinforcement detailing, stirrup spacing, and concrete grades clearly labelled for execution at the site level. Each column type is shown with section views and dimensions for easy interpretation.

The drawing also covers footing layouts and reinforcement detailing from the foundation level up to the roof or terrace slab. Load-bearing considerations are reflected through varying reinforcement distribution as per structural requirements. All construction notes are included to support both structural engineers and site supervisors.

This file is highly suitable for architects, civil engineers, structural engineers, contractors, and students working with RCC building construction. The CAD file is fully editable, allowing users to modify column designs based on project scale and building load needs.

Download this drawing to accelerate accurate planning, reduce design errors, and strengthen your structural documentation workflow.
