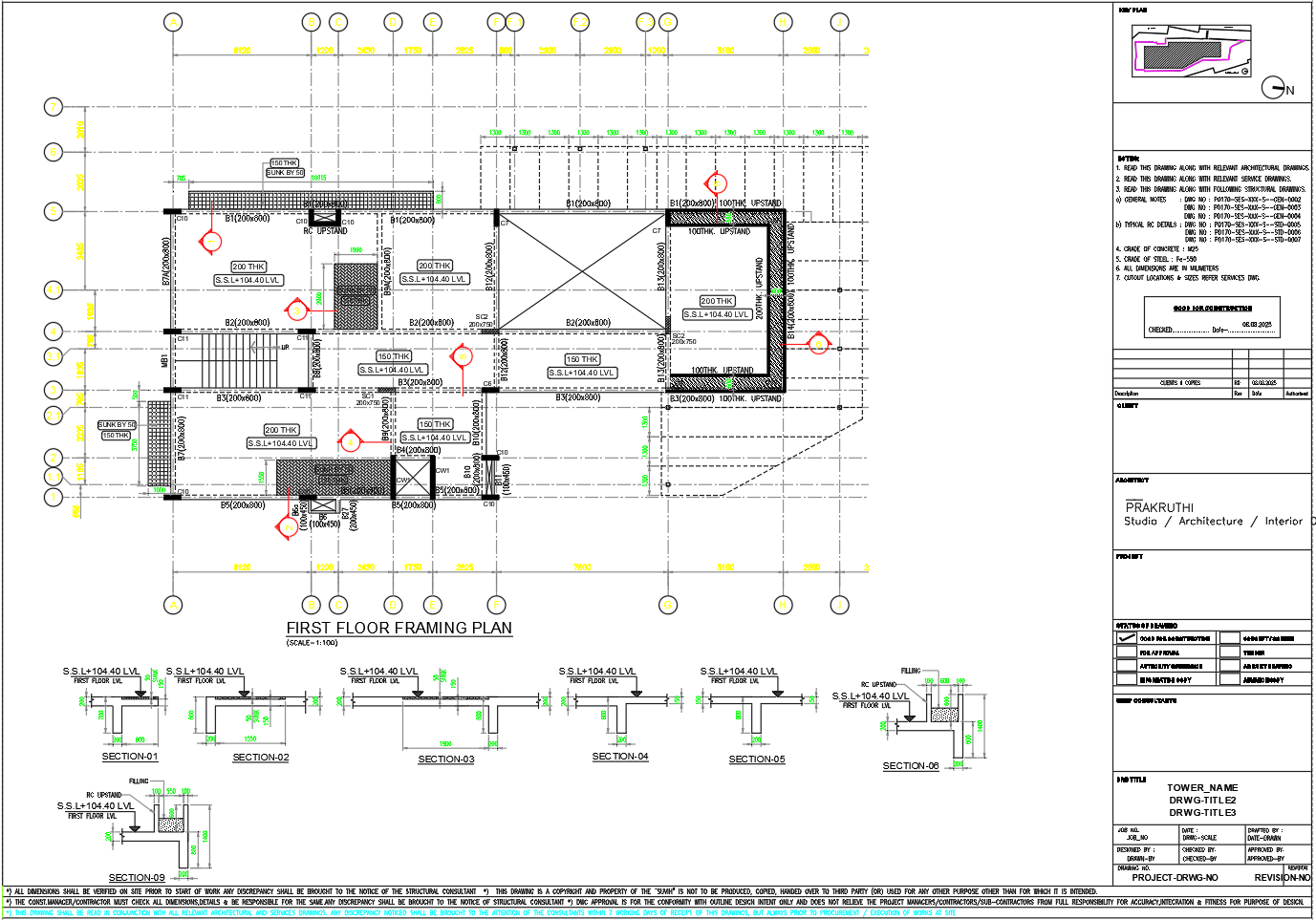

Residential First Floor Framing Plan with Beam Layout and Schedule

This AutoCAD DWG file provides a first-floor framing plan with complete beam layout and scheduling details suitable for residential construction projects. The drawing includes clear grid references, beam sizes, slab levels, upstand beams, load transfer points, and foundation alignment references for proper site implementation.

The beam schedule offers detailed specifications for each beam, including span lengths, depth, reinforcement configuration, stirrup spacing, and top-bottom steel placement. Each beam is labelled and coordinated with the framing plan for easy reading during execution on site.

This drawing is ideal for architects, structural engineers, civil engineers, interior designers, and contractors seeking accurate, ready-to-use structural documentation to support design development, construction planning, and approval processes.
