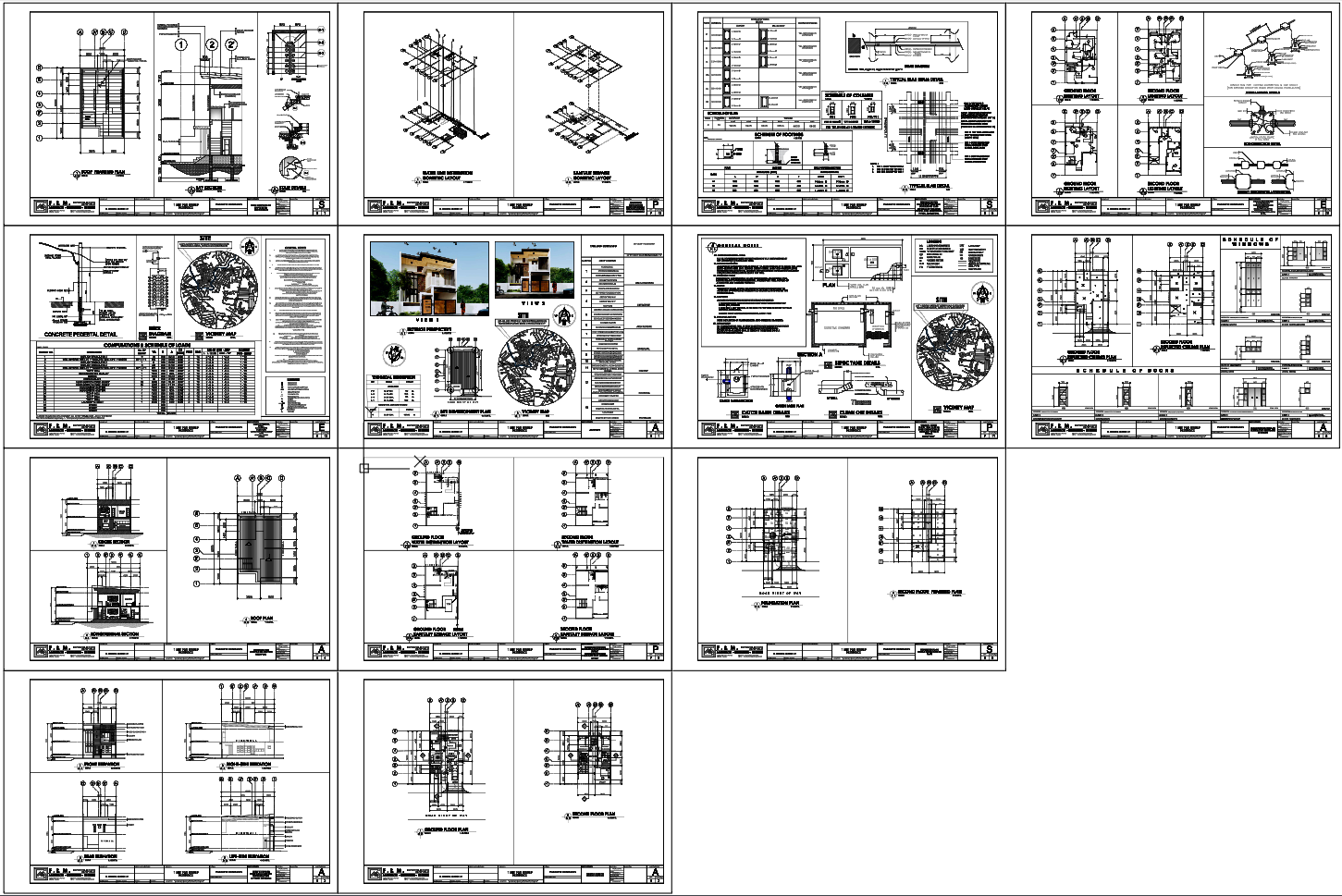

2 Storey Residential Villa Plan with Structural RCC Details Drawing

This downloadable AutoCAD DWG file provides a complete 2-storey residential villa plan with full architectural and structural working drawings. The ground floor and first floor layouts include living room, bedrooms, kitchen, staircase position, doors and windows arrangement, and circulation planning.

The drawing set also includes elevations and sectional views to understand façade proportions, wall heights, parapet height, floor levels, and roof line configuration. All dimensions and reference markers are clearly provided to support execution and visualisation.

A complete RCC structural package is included, such as footing layout, column reinforcement schedule, beam schedule, slab reinforcement details, and typical construction notes. These drawings are prepared for site-level construction, ensuring clarity for engineers, contractors, and site supervisors.

This DWG file is ideal for architects, civil engineers, builders, interior designers, and students looking for a ready-to-use reference for villa planning and RCC execution drawings.
