G plus 1 Residential Building Plan With Structural Details 6m x 9m

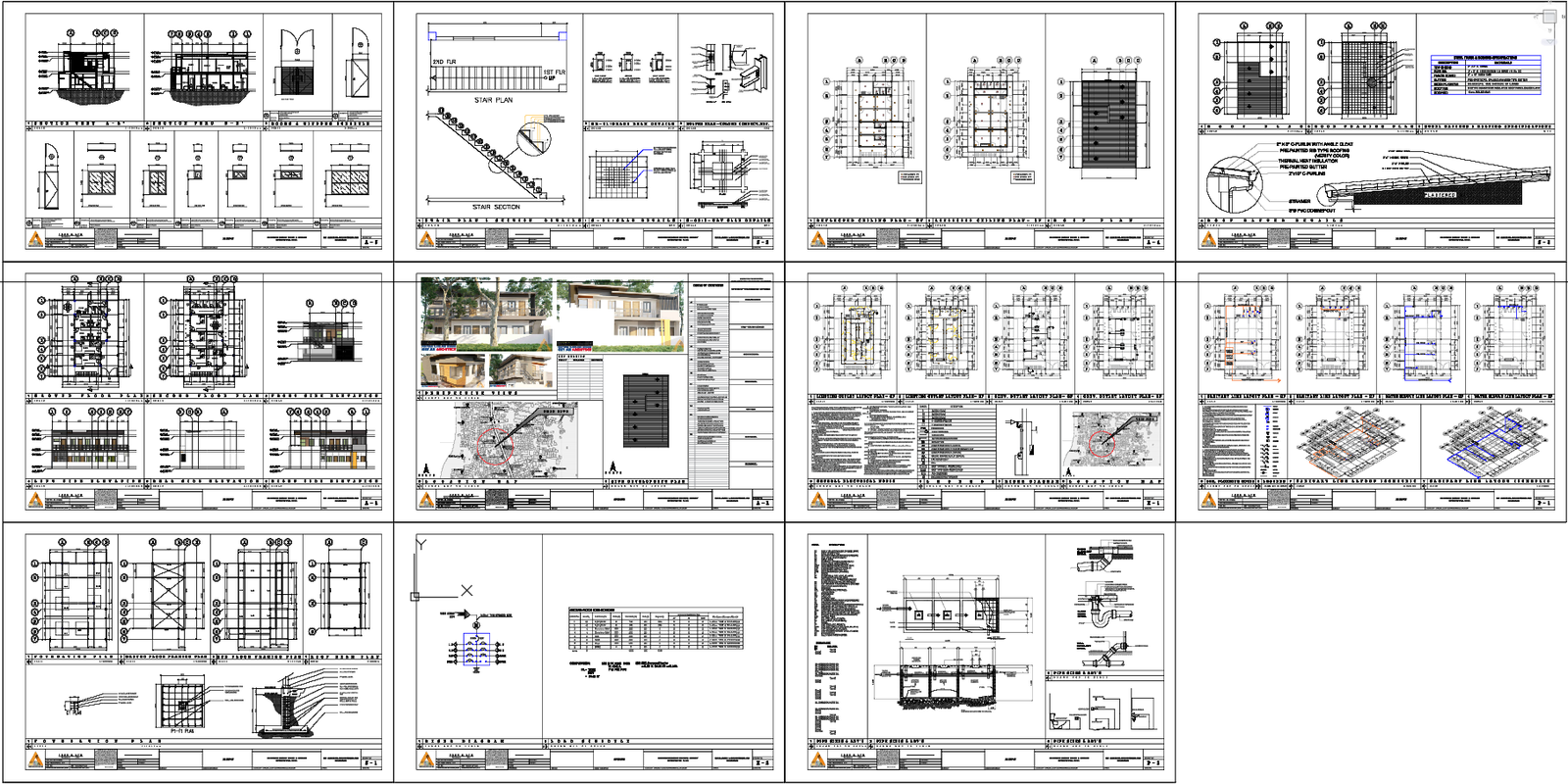

This G+1 residential building AutoCAD drawing set includes complete architectural and structural working drawings for a building footprint of approximately 6m × 9m built-up size. The files contain ground floor and first floor plans, column layout with grid centerlines, and detailed reinforcement schedules. The structural drawings include footing sizes ranging from 900mm x 900mm to 1200mm x 1200mm, beam depth sizes of 230mm to 300mm, slab thickness of 120mm, and column sections of 230mm x 300mm as per the design requirements.

The set also provides foundation layout, plinth beam layout, staircase reinforcement details, roof slab reinforcement drawings, and elevation and sectional views to clearly understand building massing and load transfer. Each sheet contains precise dimensioning, centerline references, construction notes, and material specifications, ensuring accuracy for contractors, site engineers, architects, and civil drafting students.

This drawing set is ready for construction, estimation, planning approval, and study reference use.
