G2 School Building Plan Classrooms Staircase Details 80x25m DWG file

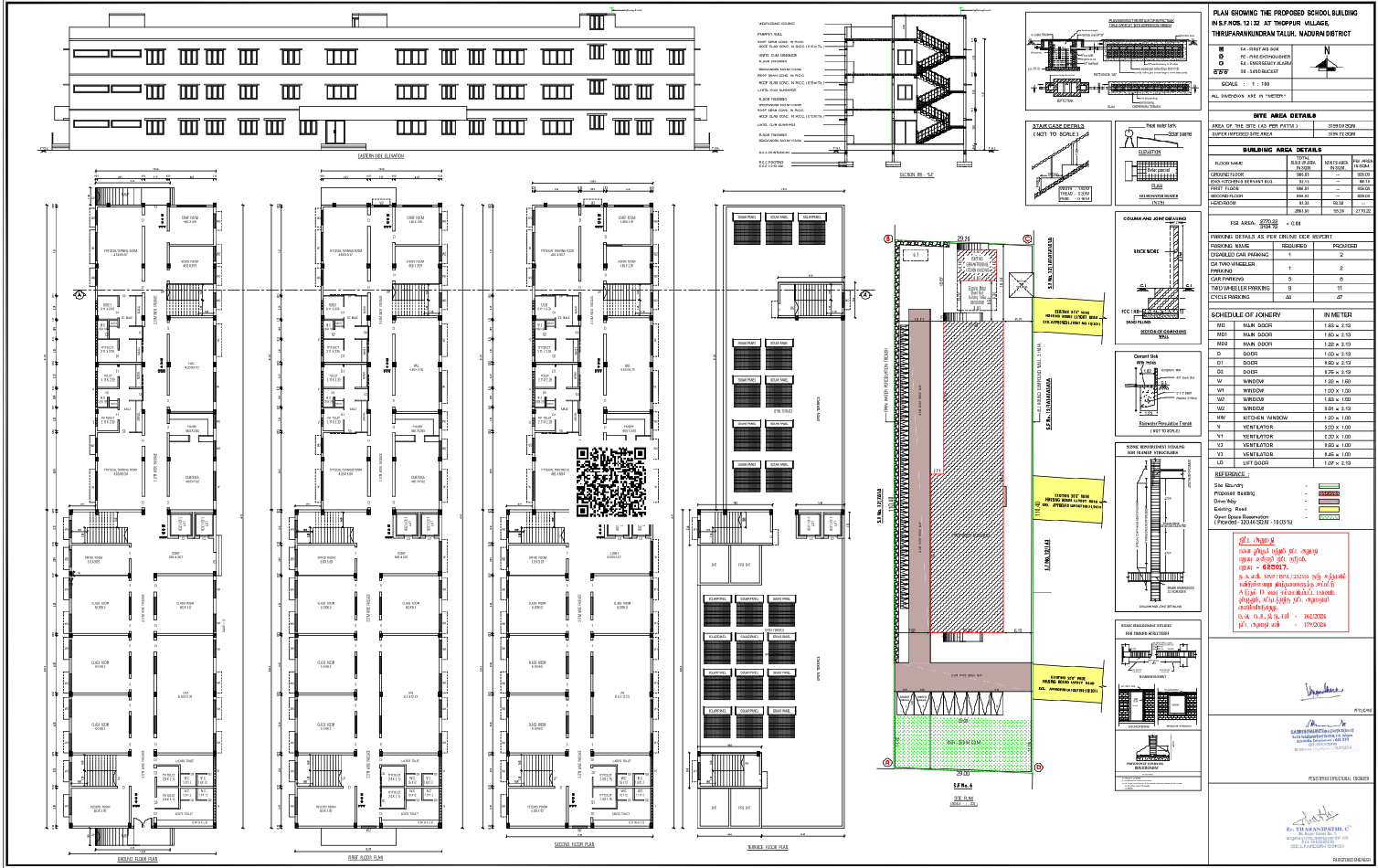

This AutoCAD DWG file provides a G+2 school building plan designed on an approximate 80m x 25m site layout. The drawing includes ground floor, first floor, and second floor classroom arrangements, along with corridors, staff rooms, admin spaces, toilets, staircase blocks, and circulation areas clearly dimensioned.

The elevation view highlights uniform window alignment and façade treatment, while staircase sections and ramp details support smooth internal movement. A joinery schedule is also included for doors, windows, and ventilators with precise sizes in meters, ensuring accurate construction execution.

Additional information, such as site boundaries, setback lines, room labelling, wall thickness, beam grid, and service access points, is indicated for architectural and structural reference. This drawing is suitable for architects, civil engineers, contractors, and academic building planners developing institutional educational facilities.
