Modern Residential Villa Architectural Plans and Elevations DWG

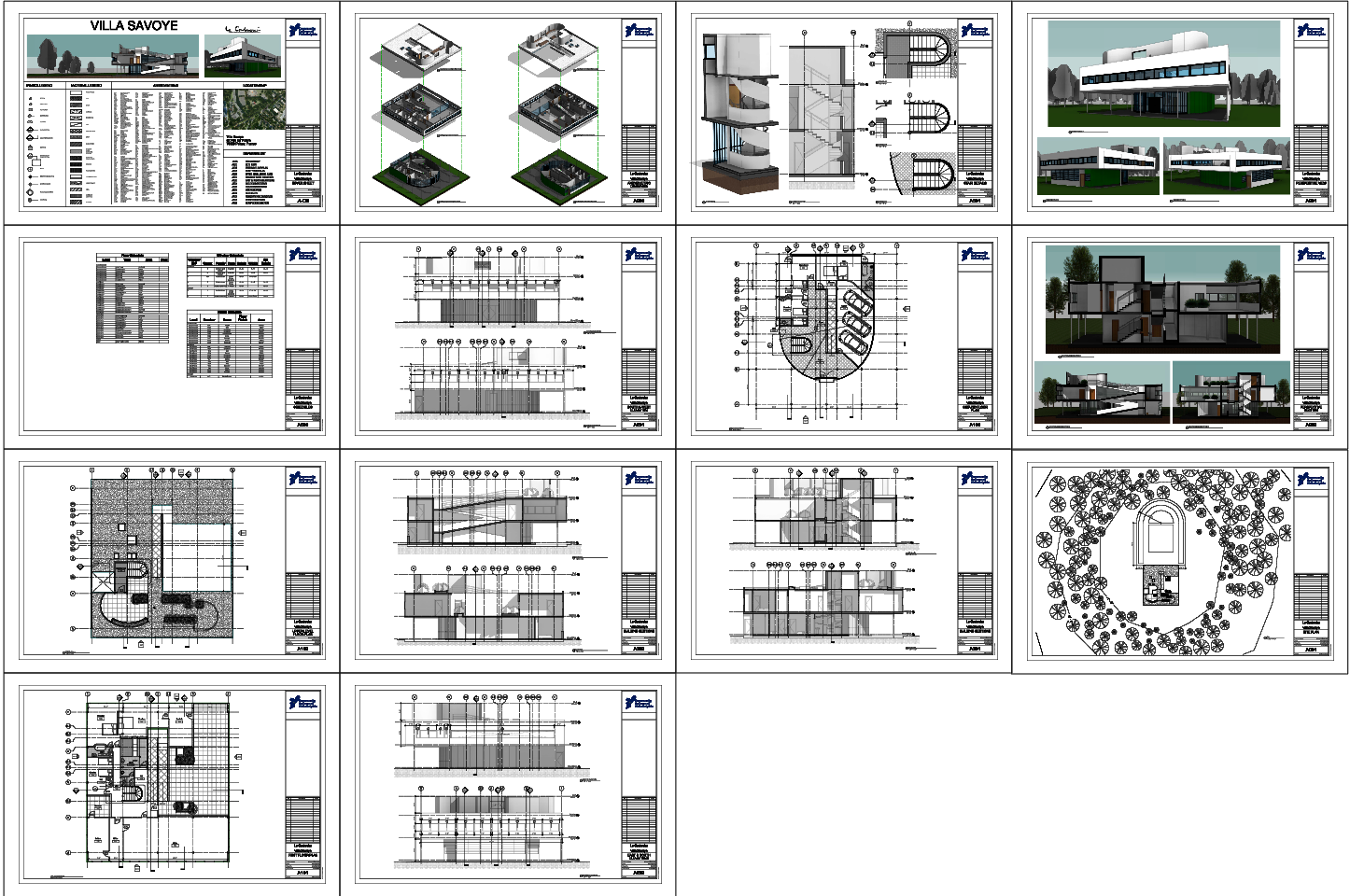

This AutoCAD DWG file contains detailed architectural drawings for a modern residential villa, including 2D plans, elevations, sectional views, and 3D visual presentation sheets. The layout documentation illustrates spatial planning for living areas, bedrooms, staircases, terrace access, circulation, and landscape surroundings with well-arranged dimensions.

The plan views present room configurations, structural grid references, door and window positions, and internal movement flow. These support design understanding and allow easy modification during concept or execution stages.

The elevation and sectional drawings show façade alignment, wall heights, roof levels, shading features, and staircase detailing, enabling accurate visualisation of the villa's form. 3D perspective sheets help clients and designers evaluate aesthetics and volume composition clearly.

Key Highlights:

• Clear structural grid and room dimension labelling
• Elevations with height markers for façade development
• Staircase and core detailing for precise construction
• 3D visual sheets to enhance client presentations

This drawing is valuable for architects, civil engineers, interior designers, contractors, and students developing or studying villa-style residential architecture.
