20x60 Feet Architecture Residential Building AutoCAD DWG Plan Design

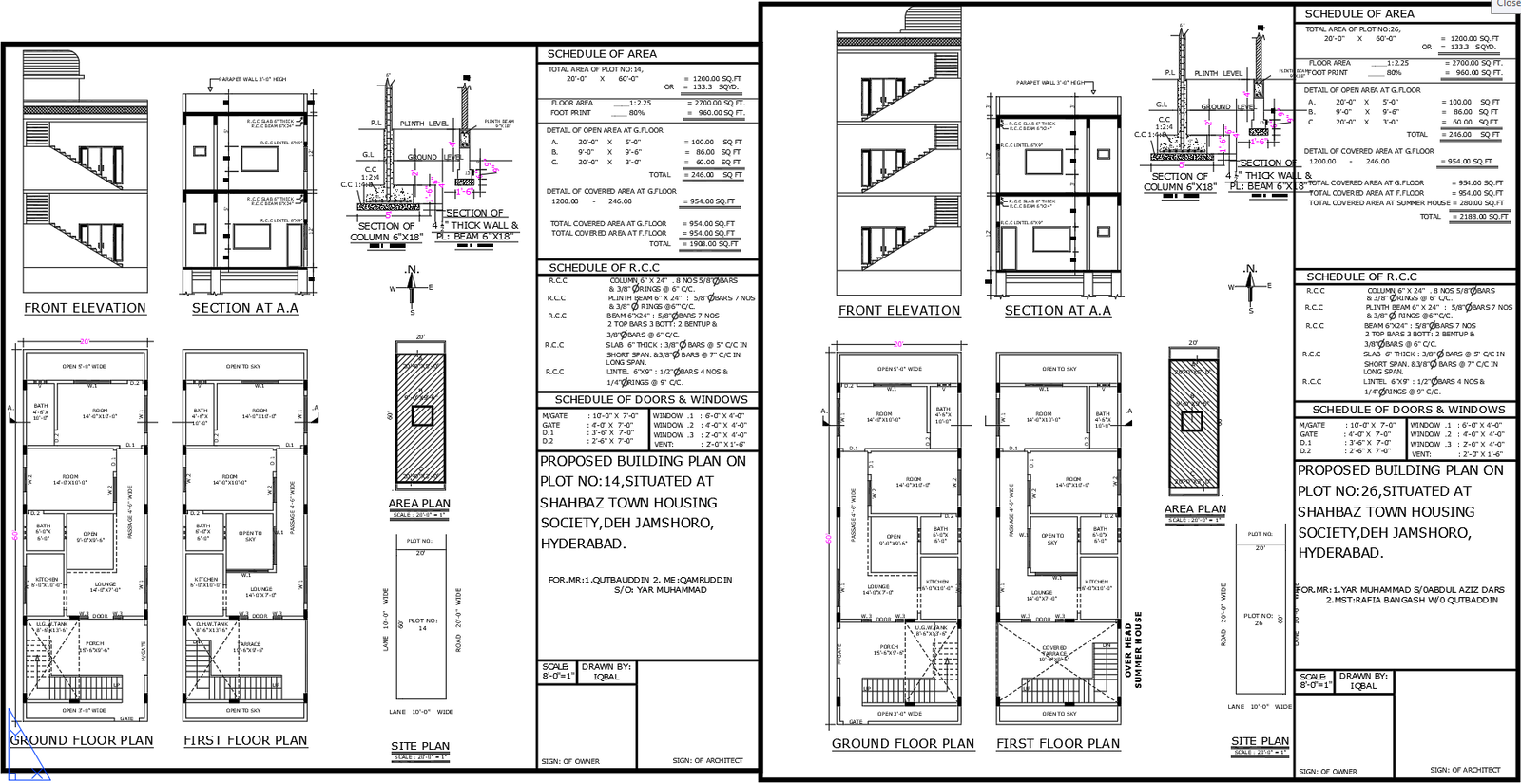

This AutoCAD DWG drawing features a complete residential building design on a 20x60 feet (1200 sq.ft) plot, including ground and first-floor plans, front elevation, sectional view (A-A), RCC schedule, and area plan. Designed for compact plots, this layout maximizes space efficiency while maintaining functionality and ventilation across all floors.

The ground floor plan includes a porch (15’-6”x9’-6”), two bedrooms (14’-0”x10’-0”), lounge (14’-0”x7’-0”), kitchen (6’-0”x10’-0”), and bathroom (4’-6”x10’-0”). The first-floor layout mirrors the lower floor with a terrace and open-to-sky area to enhance natural lighting. The drawing also details columns (6”x24”), RCC beams (6”x24”), slabs (6” thick), and lintels (6”x9”), ensuring full structural clarity for construction professionals.

Key Highlights:

• Compact residential layout ideal for 20x60 ft plots.
• Full RCC detailing with beam, column, and slab specifications.
• Includes elevation, sectional plan, and area calculations.
• Total covered area: 954 sq.ft per floor and 1908 sq.ft total.
• Suitable for architects, civil engineers, and AutoCAD professionals designing small urban homes.
• Editable DWG format compatible with AutoCAD, Revit, and SketchUp.
