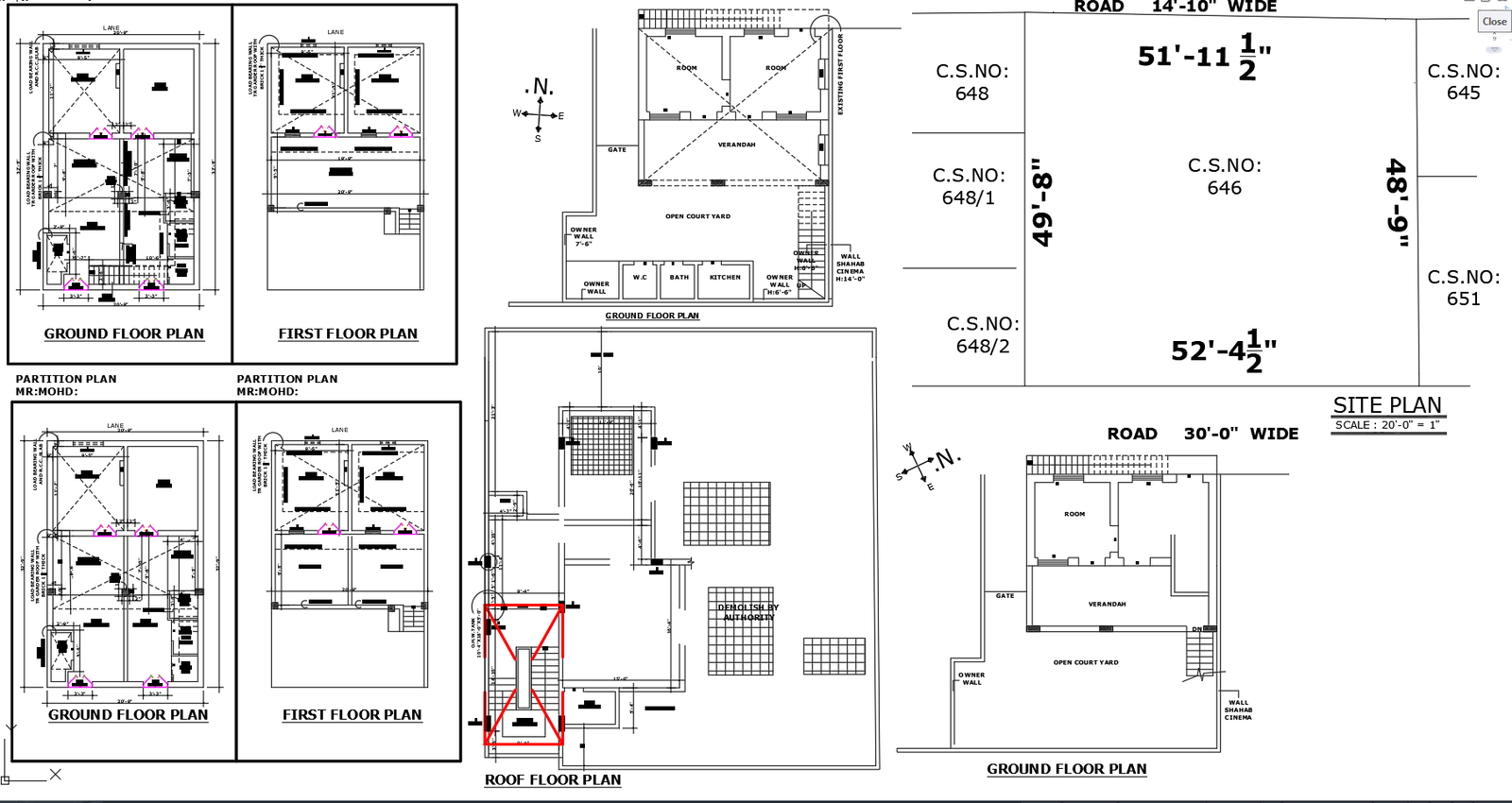

AutoCAD Residential House Plan DWG with Site and Roof Layout

This AutoCAD DWG drawing showcases a detailed residential house design complete with ground floor, first floor, and roof floor plans, as well as a comprehensive site layout. The plan outlines precise room arrangements, open courtyard area, kitchen, bath, verandah, and stair placement with all structural dimensions clearly labeled for ease of construction and modification.

The ground floor plan features a verandah (9'-5”x7'-10”), two bedrooms (9'-5”x11'-2”), kitchen (4'-0”x7'-3”), bathroom (3'-3”x4'-6”), and W.C. (3'-3”x3'-3”) connected through an open courtyard, optimizing ventilation and daylight. The first floor layout provides an efficient arrangement with access to a terrace and balcony, while the roof plan integrates water tank and slab projections (2'-0” to 2'-6”) ensuring structural strength and functional detailing.

Key Highlights:

• Complete residential house design with all floor layouts and site plan.
• Includes structural columns (9"x18", 9"x24"), beam details, and wall projections.
• Accurate site measurements: 52'-4½” x 49'-8”.
• Open courtyard design enhances ventilation and natural light.
• Detailed roof plan with water tank and open terrace arrangement.
• Ideal for architects, civil engineers, and AutoCAD professionals.
• Fully editable DWG file compatible with AutoCAD, Revit, and SketchUp.
