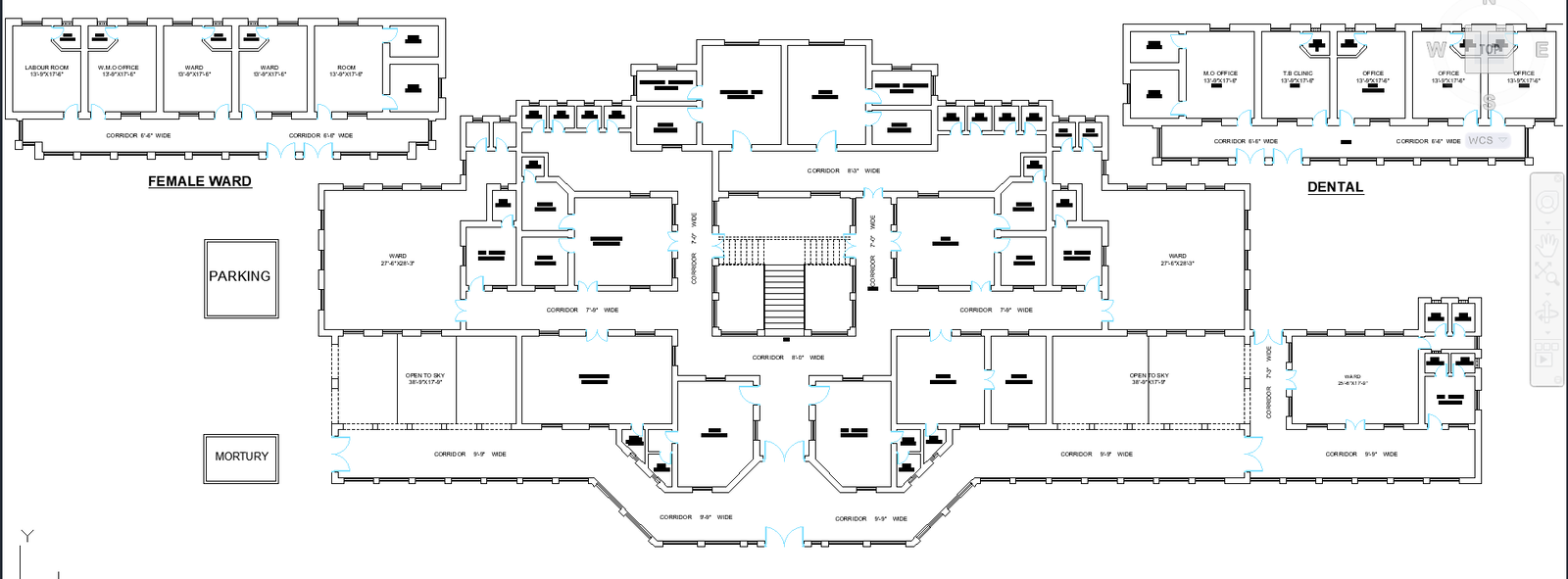

Hospital Floor Plan AutoCAD DWG File with Detailed Room Dimensions

This detailed hospital floor plan AutoCAD DWG file provides a complete architectural layout featuring precisely measured wards, OPD rooms, MO offices, laboratories, dispensary areas, emergency rooms, and supporting medical spaces. The drawing includes multiple ward layouts such as 27 ft 6 in x 28 ft 3 in, 13 ft 9 in x 17 ft 6 in, male and female wards, labour rooms, dental units, TB clinic spaces, and hepatitis rooms. The design also covers OPD rooms sized 15 ft 3 in x 21 ft 3 in, MO offices measuring 10 ft 3 in x 9 ft 6 in, and laboratory areas of 19 ft 9 in x 17 ft 9 in, providing a full framework for medical planning.

The DWG file further includes treatment spaces, surgical rooms like O.T 18 ft 6 in x 15 ft 9 in, X-Ray rooms 12 ft x 12 ft 3 in, EPI units, emergency rooms 10 ft x 10 ft 3 in, multiple store rooms ranging from 4 ft x 5 ft 6 in to 12 ft x 7 ft 9 in, and structured corridors between 5 ft 9 in to 9 ft 9 in wide for patient circulation. Parking areas, mortuary rooms, kitchens, lounges, clerical sections, and open-to-sky courtyards are also incorporated, making this subscription-based DWG ideal for architects, civil engineers, interior planners, and hospital design professionals seeking accurate, real-world medical facility layouts.
