45x60 AutoCAD House Plan with Three Floor Layout in DWG Format

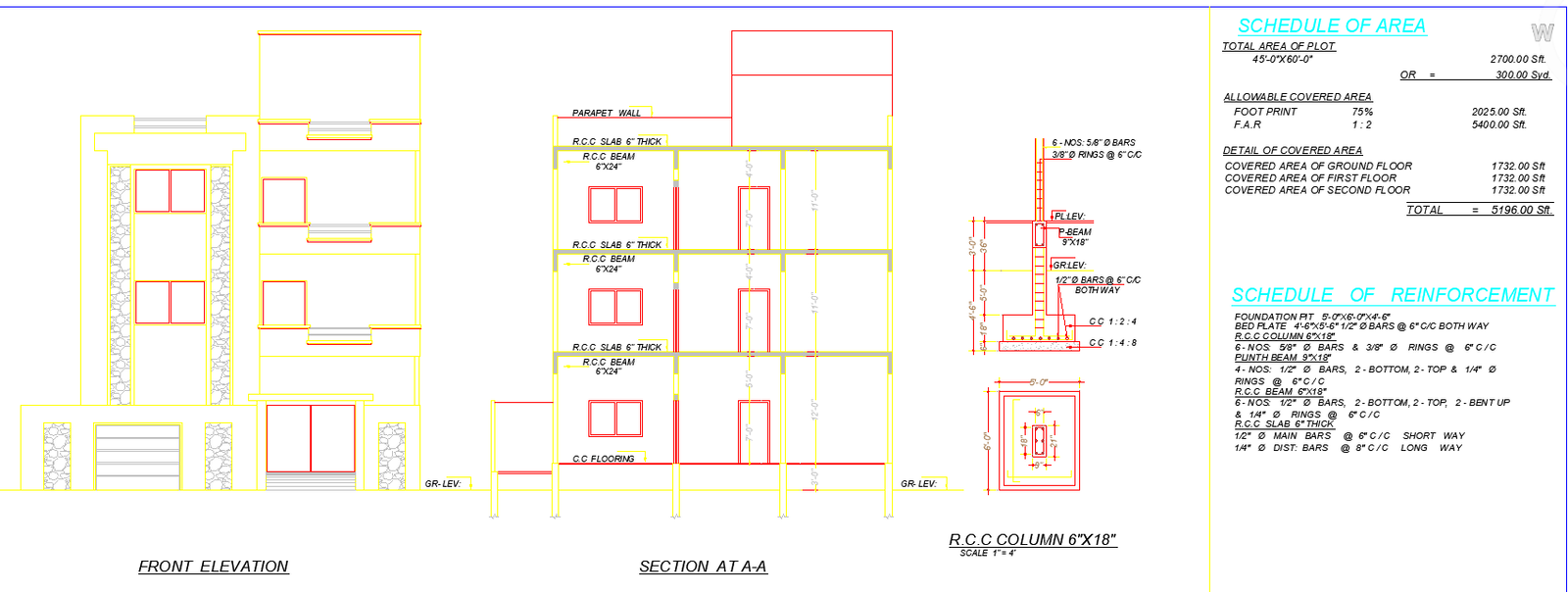

This detailed 45 ft by 60 ft AutoCAD house plan DWG offers a complete residential layout with a fully designed ground floor, first floor, and second floor, as shown in the uploaded file. The ground floor features a large car porch measuring 17 ft 6 in by 19 ft along with a spacious drawing room of 14 ft by 14 ft, a T V lounge of 23 ft 6 in by 12 ft, a kitchen measuring 11 ft 6 in by 8 ft 6 in, a main bedroom of 13 ft by 14 ft 6 in, another bedroom of 13 ft by 12 ft and multiple bathrooms sized 6 ft by 10 ft and 9 ft by 4 ft. Open to sky areas are provided throughout the layout to support ventilation and natural lighting. The first and second floor contain identical room arrangements including a T V lounge of 23 ft 6 in by 12 ft, two bedrooms sized 13 ft by 14 ft and 13 ft by 14 ft 6 in, a drawing room of 14 ft by 13 ft and a terrace of 17 ft 6 in by 13 ft 6 in, ensuring functional multipurpose living spaces for families.

The DWG also includes a complete structural blueprint with an RCC slab thickness of 6 inches, RCC beams of 6 inches by 24 inches, a plinth beam of 9 inches by 18 inches, and RCC columns of 6 inches by 18 inches for accurate construction planning. Fixture schedules list main gate sizes of 10 ft by 7 ft, ventilation openings of 2 ft by 1 ft 6 in, window sizes of 6 ft by 4 ft, and wooden door dimensions including 3 ft 6 in by 7 ft. The site plan and block plan reflect the 2700 square feet plot area and a covered area of 1732 square feet per floor, which is also clearly shown in the schedule of area. This DWG file is ideal for architects, civil engineers, builders, and interior designers who require a complete multi-floor house plan ready for digital modification and professional use.
