Multi-Floor AutoCAD Building Plan with Shops and Residential Layout

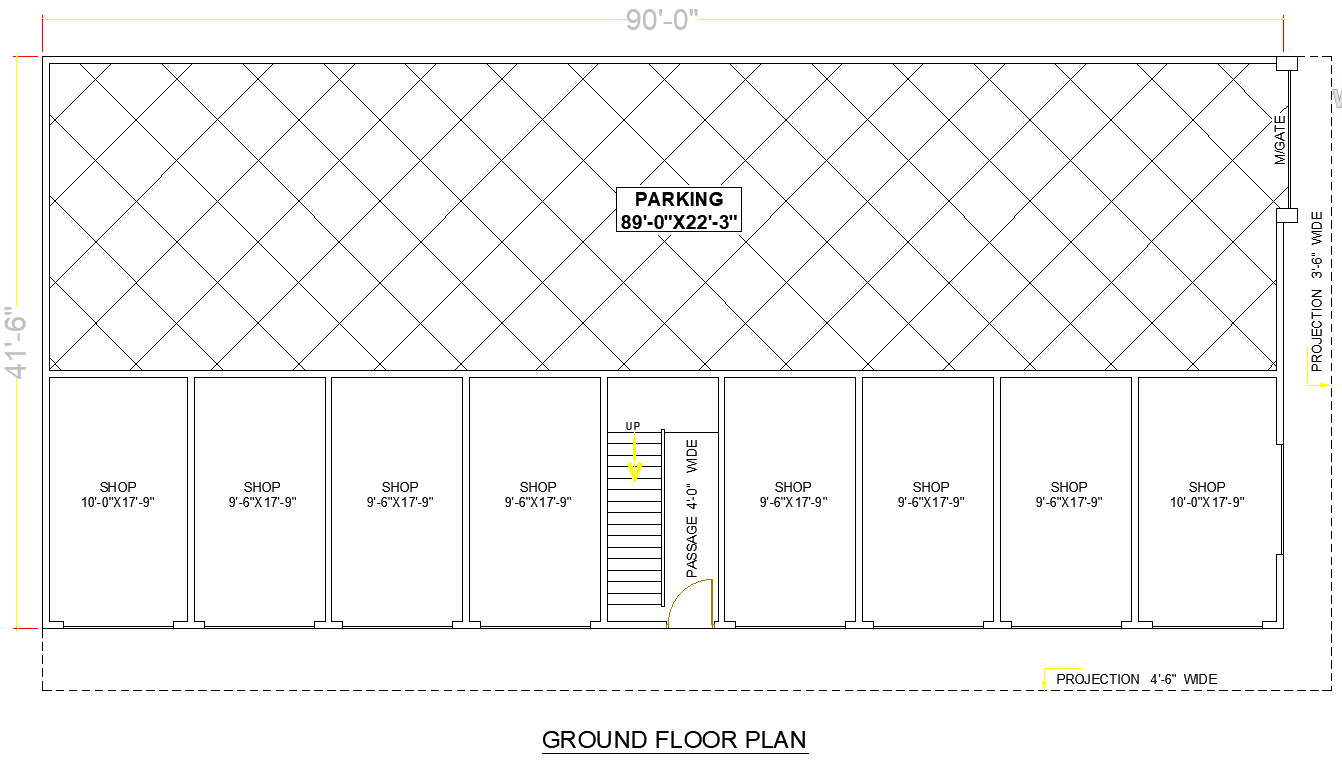

This commercial AutoCAD DWG plan provides a detailed layout featuring a full arrangement of shops, residential rooms, and circulation spaces across multiple levels, as shown in the uploaded drawing. The ground floor includes a large parking area measuring 89 ft by 22 ft 3 in, along with several shop units sized 10 ft by 17 ft 9 in and 9 ft 6 in by 17 ft 9 in. A 4 ft wide passage connects these commercial spaces and leads to the staircase for upper-level access. The first floor presents a mix of bedrooms in sizes such as 14 ft 6 in by 10 ft 10 in, 14 ft 6 in by 11 ft 6 in, and 15 ft 6 in by 10 ft 10 in. Drawing rooms measure 13 ft 9 in by 14 ft 4 in and 11 ft 9 in by 14 ft 4 in, while lounges vary from 9 ft 6 in by 14 ft 9 in to 13 ft 6 in by 18 ft 3 in.

Bathrooms appear in multiple dimensions, including 5 ft by 6 ft, 6 ft by 4 ft, and 3 ft 6 in by 7 ft 6 in. Kitchens are provided in sizes such as 6 ft by 7 ft 6 in and 5 ft by 7 ft 6 in, while balcony options include open areas on both ends of the floor. Open sky spaces are positioned for natural light and ventilation. This DWG file offers a complete commercial and residential combined layout suitable for architects, civil engineers, builders, and designers who need a structured and ready-to-use CAD plan for professional project development.
