Mixed Use AutoCAD DWG Building Plan with Shop and Home Layouts

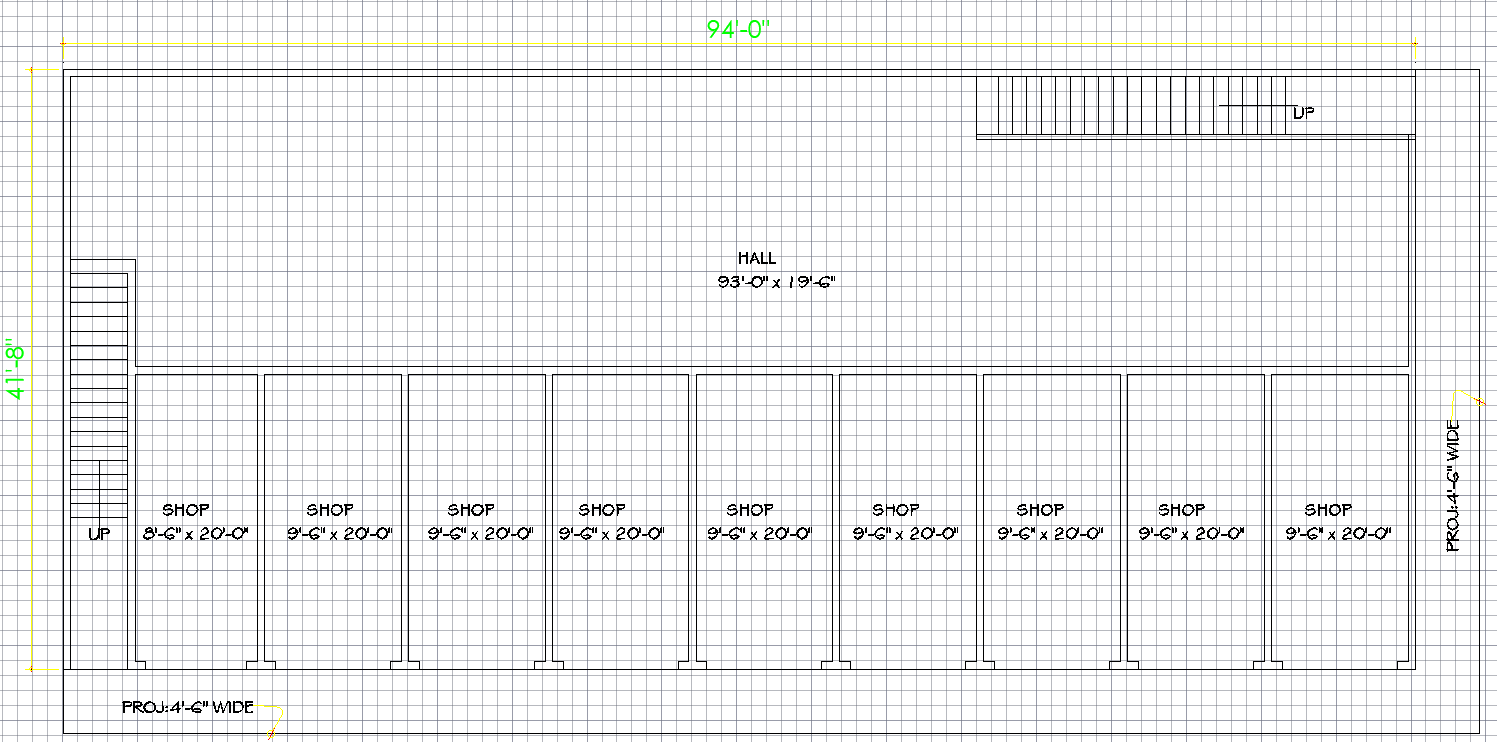

This AutoCAD DWG drawing provides a full mixed-use building layout that combines commercial shops and residential units in a structured design. The commercial section includes a continuous row of shops sized 9 ft 6 in x 20 ft, arranged along a frontage of 94 ft with a projection of 4 ft 6 in. One shop unit is shown at 8 ft 6 in x 20 ft, providing variety in commercial sizing. The plan also features a large hall measuring 93 ft x 19 ft 6 in, placed behind the shop line for multi-purpose use. Clear circulation elements, such as UP and DN staircases, are included for vertical movement. The width of the site is 41 ft 8 in, giving users a clear understanding of plot scale and structure.

The residential portion includes bedrooms of 14 ft 9 in x 10 ft, 14 ft 6 in x 10 ft, and 16 ft x 9 ft 6 in, with attached baths sized 6 ft x 4 ft and 4 ft x 6 ft. Lounges appear in different variations, such as 14 ft 3 in x 9 ft 6 in and 14 ft 3 in x 20 ft, offering versatile layout options. The drawing includes kitchens sized 8 ft x 6 ft and 8 ft x 5 ft, along with galleries measuring 4 ft wide, ensuring smooth internal movement. Passages of 4 ft wide are included for easy access between rooms. This DWG file is ideal for architects, interior designers, civil engineers, and builders seeking accurate mixed-use designs for subscription use.
