Residential AutoCAD Drawing Plan with 10x11 and 13x11 Room Layouts

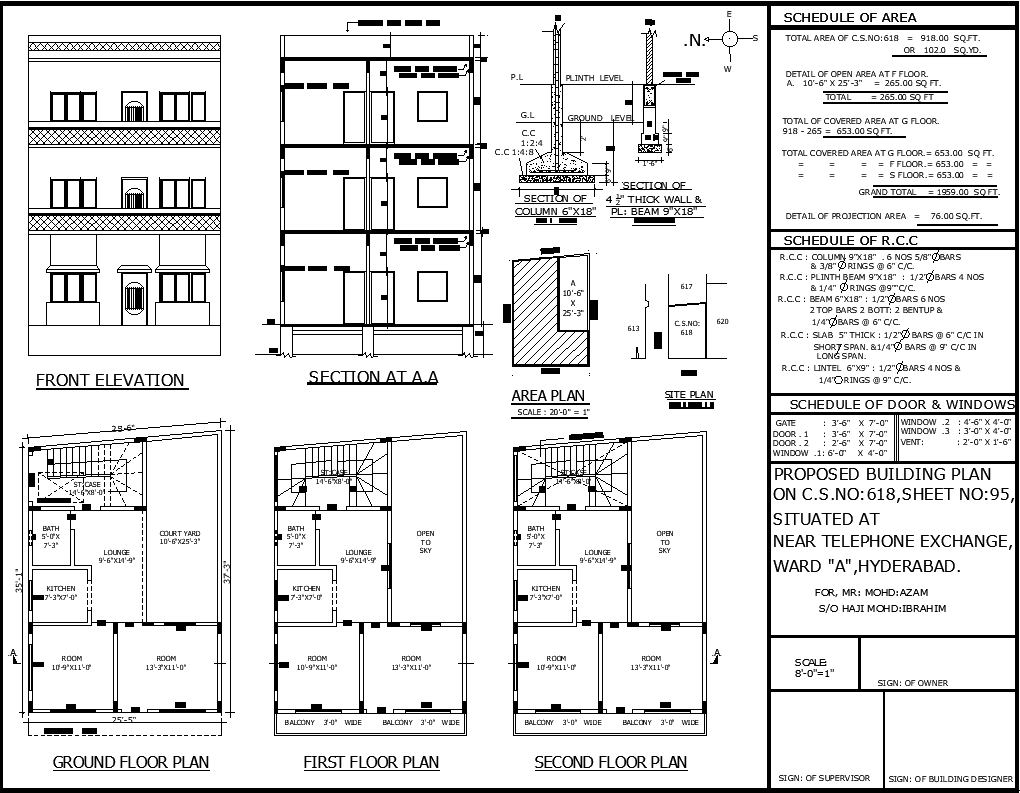

This AutoCAD DWG residential building plan provides a complete multi-floor layout featuring precisely dimensioned spaces ideal for architects, civil engineers, interior designers, builders, and CAD professionals. The ground floor includes two main rooms sized 10 ft 9 in x 11 ft and 13 ft 3 in x 11 ft, a central 9 ft 6 in x 14 ft 9 in lounge, a 7 ft 3 in x 7 ft kitchen, and a 5 ft x 7 ft 3 in bath, with a well-ventilated 10 ft 6 in x 25 ft 3 in courtyard enhancing natural light and airflow. The staircase core measuring 14 ft 6 in x 8 ft ensures efficient vertical circulation across floors, while the 3 ft wide projection and gate access create a practical approach layout suitable for compact residential plots.

The first and second floors replicate the functional spatial arrangement, featuring 3 ft wide balconies, open-to-sky segments, and uniform room proportions that support flexible interior planning. Technical construction details include 6 in x 18 in R.C.C beams, 6 in x 9 in lintels, 5 in slabs, plinth beams, column sections, and complete door-window schedules for accurate execution. The area schedule highlights a 918 sq ft plot, 653 sq ft covered floor area, and storage go-downs sized 324 sq ft and 430 sq ft, making this drawing an essential resource for subscribers seeking detailed residential planning files. This DWG helps users access a ready-to-use architectural layout for approvals, structural coordination, and 3D modeling workflows on Cadbull.
