AutoCAD House Plan Showing Courtyard Verandah and Room Dimensions

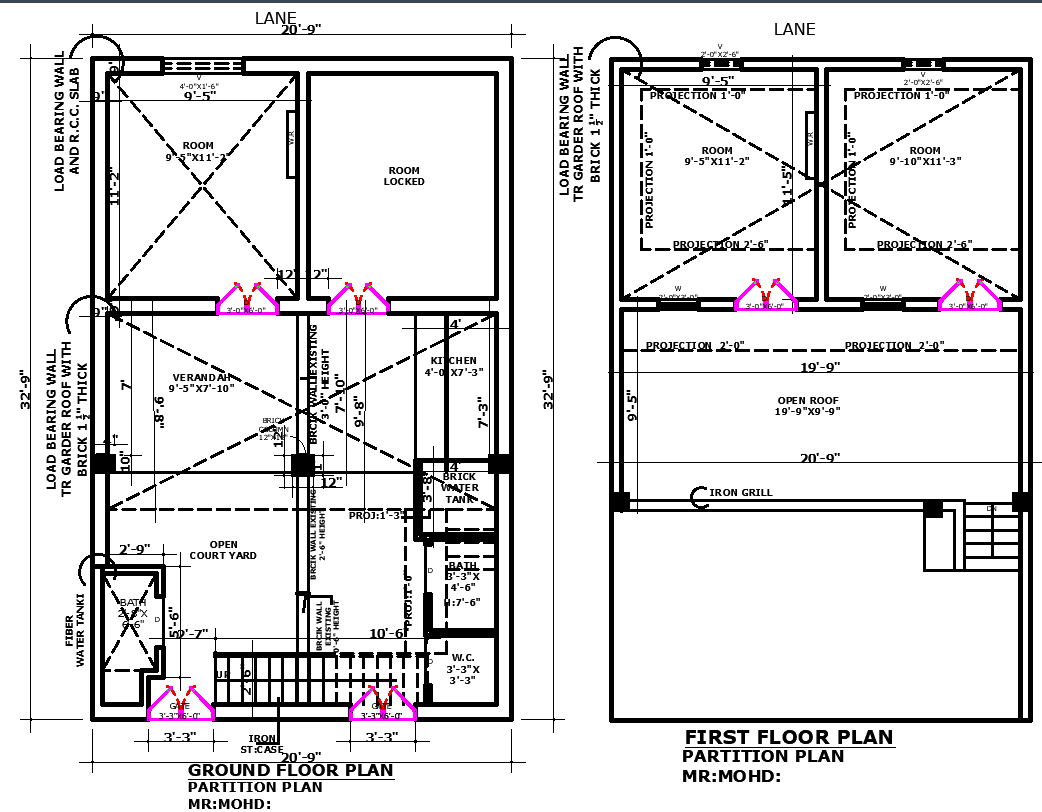

This AutoCAD house plan provides a clear residential layout featuring accurately measured ground floor, first floor, roof floor, and site plan details essential for architects and planners. The ground floor includes a 9 ft 5 in by 11 ft 2 in room, a 9 ft 5 in by 7 ft 10 in verandah, and a compact kitchen measuring 4 ft by 7 ft 3 in, along with bath layouts of 2 ft 8 in by 6 ft 6 in and 3 ft 3 in by 4 ft 6 in, providing complete clarity for interior planning. A 2 ft 6 in open courtyard, multiple door sizes such as 3 ft by 6 ft, brick walls of 9 in and 12 in thickness, and brick columns sized 12 in by 12 in add structural accuracy to the plan. The presence of load-bearing walls, RCC slab notation, fiber water tank area, and a 3 ft 3 in gate highlights construction-ready details for architectural use.

The first floor features a room measuring 9 ft 10 in by 11 ft 3 in with several projections ranging from 1 ft to 2 ft 6 in, ventilation windows of 2 ft by 2 ft 6 in, and stair dimensions supporting vertical circulation. The roof floor includes a staircase of 9 ft 4 in by 19 ft 9 in, an open balcony of 9 ft 4 in, and an overhead water tank measuring 10 ft 4 in by 18 ft by 5 ft, making the upper levels fully documented for planning and execution. The site plan shows road widths of 30 ft and 14 ft 10 in and plot lengths between 48 ft 9 in and 52 ft 4½ in, helping designers understand boundary limits before drafting elevations or structural drawings. This complete DWG ensures accuracy for architects, civil engineers, interior designers, and builders seeking precise residential planning data.
