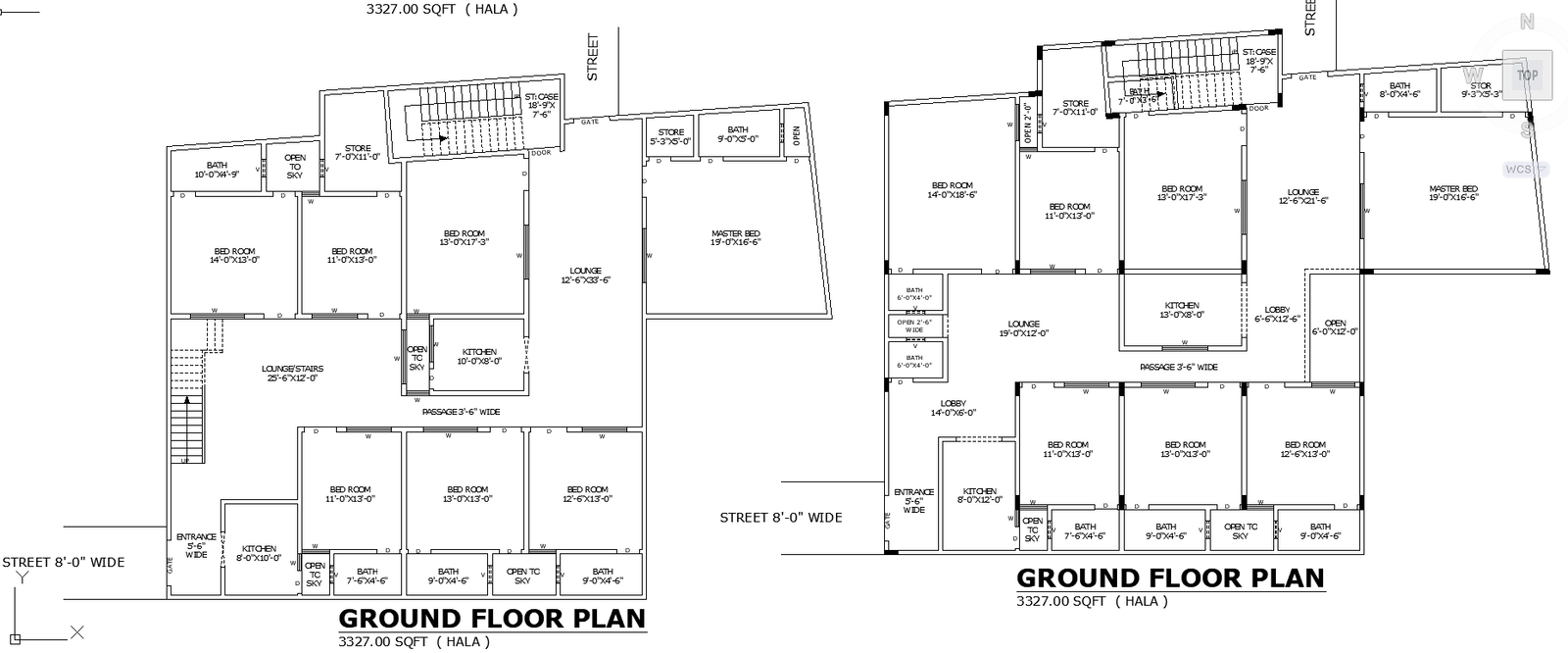

Residential AutoCAD DWG Plan with 3327 SQFT Layout and Room Sizes

This AutoCAD house plan layout presents a complete residential design featuring precise site dimensions, room measurements, and internal circulation, making it highly valuable for architects, civil engineers, and interior designers. The site plan shows a 3327 sqft plot with surrounding street widths of 8 ft and boundary lengths such as 53 ft, 31 ft, 27 ft, and 20 ft 6 in that clearly define the overall footprint of the property. The ground floor includes a variety of bedroom layouts, including 11 ft by 13 ft, 13 ft by 14 ft, 14 ft by 13 ft, and a spacious master bedroom measuring 19 ft by 16 ft 6 in. Bathrooms are provided in multiple sizes, such as 10 ft by 4 ft 9 in, 7 ft by 11 ft, 9 ft by 4 ft 6 in, and 7 ft 6 in by 4 ft 6 in, along with several open-to-sky ventilation courts positioned throughout the layout. Kitchens are shown in sizes of 8 ft by 10 ft, 10 ft by 8 ft, and 13 ft by 8 ft, complemented by store rooms measuring 7 ft by 5 ft and 7 ft by 11 ft.

The floor plan also features multiple lounge areas, including 12 ft 6 in by 26 ft 6 in, 12 ft 6 in by 33 ft 6 in, 19 ft by 12 ft, and a large lounge-stair section measuring 25 ft 6 in by 12 ft, offering generous living and circulation spaces for residents. Passageways of 3 ft 6 in and 6 ft wide provide smooth internal movement, while the staircase element, sized 18 ft 9 in by 7 ft 6 in, ensures easy access between levels. Additional open courts and ventilation windows enhance natural light and airflow throughout the house. This detailed AutoCAD house plan layout is an essential reference for planning residential construction with accurate dimensions, efficient zoning, and practical circulation design.
