Masjid AutoCAD DWG Building Plan with Hall Mezzanine and Elevations

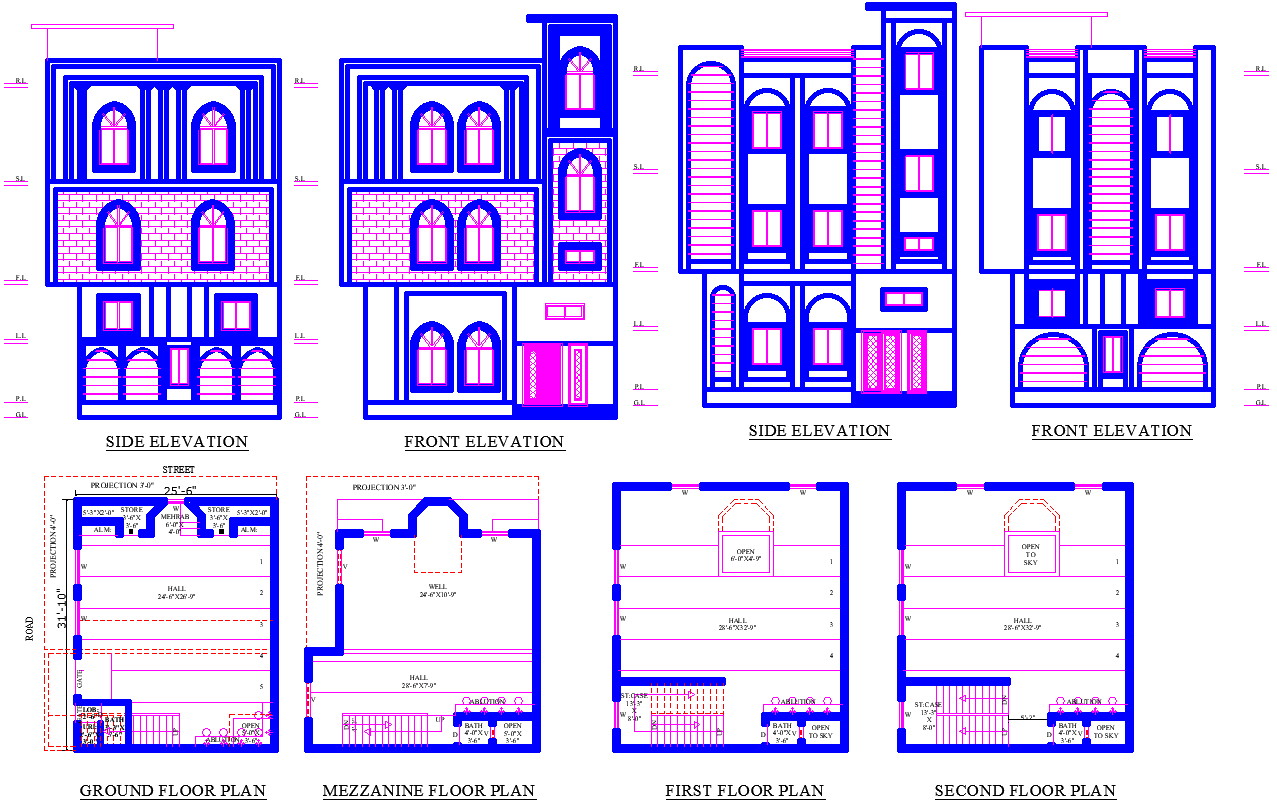

This AutoCAD DWG Masjid building plan presents a complete architectural layout featuring detailed front and side elevations with arched windows, column lines, and projected façade treatments. The ground floor includes a 24 ft 6 in x 26 ft 9 in main hall, a 6 ft x 4 ft Mehrab, stores of 3 ft 6 in x 3 ft 6 in, an ablution area of 25 ft x 10 ft, and W.C and bath units sized 4 ft x 3 ft 6 in. The mezzanine floor displays a 24 ft 6 in x 10 ft 9 in well area, a 28 ft 6 in x 7 ft 9 in hall, open spaces measuring 5 ft x 3 ft 6 in and 6 ft x 4 ft 9 in, and staircase dimensions of 13 ft 3 in x 8 ft.

The first and second floor plans include a 28 ft 6 in x 32 ft 9 in hall, multiple open-to-sky voids sized 6 ft 9 in x 9 ft, open spaces of 5 ft 2 in, and full vertical circulation access with UP and DN staircases. Each floor maintains structured projection lines of 3 ft and 4 ft, providing clarity for façade depth and architectural alignment. This DWG file is ideal for architects, interior designers, civil engineers, and builders seeking a fully dimensioned masjid plan for layout planning, 3D visualization, and construction documentation.
