Office Building Cad Drawing Plan with Rooms Lobby and Bath Layout

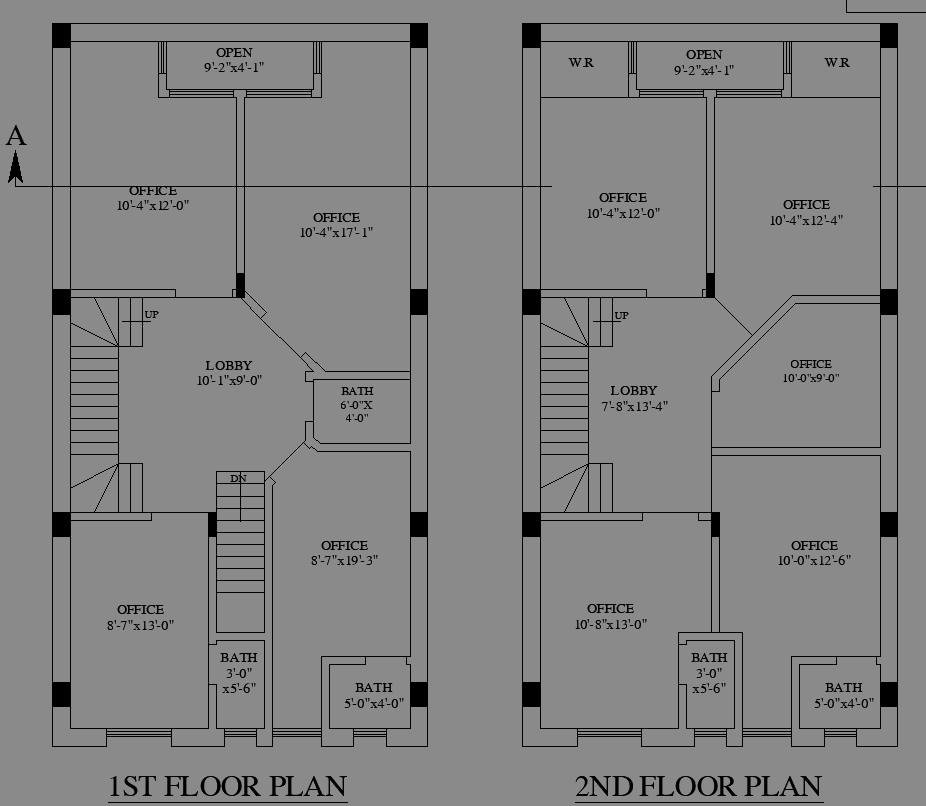

This office building AutoCAD DWG layout provides complete multi-floor detailing with office rooms, lobbies, baths, and circulation areas. The first floor includes office rooms sized 10 ft 4 in x 17 ft 1 in, 10 ft 4 in x 12 ft, 8 ft 7 in x 19 ft 3 in, and 8 ft 7 in x 13 ft, all connected to lobbies measuring 10 ft 1 in x 9 ft and 7 ft 8 in x 13 ft 4 in. Bathrooms of 5 ft x 4 ft and 3 ft x 5 ft 6 in support daily workplace functions.

The second floor features rooms of 10 ft x 9 ft, 10 ft 4 in x 12 ft 4 in, 10 ft x 12 ft 6 in, and 10 ft 8 in x 13 ft, with a 9 ft 2 in x 4 ft 1 in open area. The paint-house floor includes a 10 ft 4 in x 12 ft 4 in store, a 10 ft 4 in x 12 ft room, and a 6 ft x 4 ft bath, supported by RCC beams and slab structure. The drawing also provides a 23 ft 4 in x 42 ft 6 in site plan, block plan, front elevation, and section A-A, ideal for architects, engineers, and designers working in AutoCAD.
