House Cad Drawing AutoCAD DWG Plan with Rooms Kitchen and Court

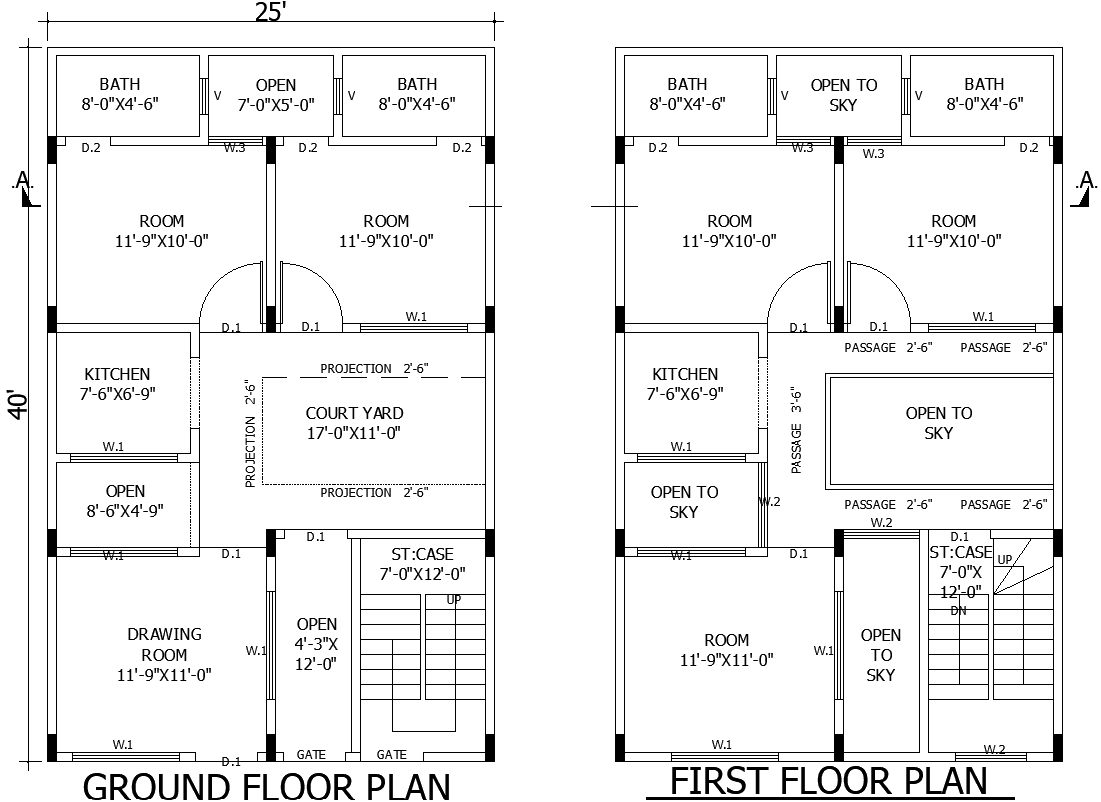

This residential AutoCAD layout provides a clear and detailed two-floor house plan designed with accurate room dimensions and essential construction elements. The ground floor shows two rooms sized 11 ft 9 in x 10 ft, positioned on opposite sides for balanced interior planning. A drawing room measuring 11 ft 9 in x 11 ft is located near the entrance, while a kitchen of 7 ft 6 in x 6 ft 9 in is placed beside the courtyard to support natural ventilation. The courtyard, drawn as 17 ft x 11 ft, functions as the core open space of the layout. Two bathrooms, each 8 ft x 4 ft 6 in, are connected to open sections of 7 ft x 5 ft, ensuring proper airflow within the plan. The staircase block is represented at 7 ft x 12 ft, offering smooth access to the upper floor.

The first floor continues the same room structure and also includes open-to-sky voids measuring 4 ft 3 in x 12 ft and 7 ft x 5 ft, enhancing natural light across the interior. The section A-A displays the structural elements, such as RCC slab thickness of 5 inches, RCC beams 6 in x 18 in, and columns 6 in x 18 in. The 25 ft x 40 ft site plan outlines boundary limits, COS open spaces of 5 ft 6 in and 7 ft 6 in, and overall building placement suited for residential development.
