Residential Cad Drawing with Floors Rooms Halls Kitchen and Bath

This residential autocad layout provides complete plans for the lower ground, upper ground, first, second, and third floors, with clear measurements for all functional areas. The plan includes rooms sized 11 ft 6 in x 13 ft, 11 ft 6 in x 15 ft 6 in, and 10 ft 6 in x 15 ft 6 in, along with halls measuring 26 ft x 15 ft, 7 ft x 13 ft 6 in, and 9 ft 6 in x 20 ft 6 in. Bathrooms appear as 4 ft x 7 ft and 7 ft x 5 ft, placed beside open-to-sky spaces such as 4 ft x 5 ft 6 in, 8 ft 6 in x 9 ft 6 in, and 4 ft 3 in x 11 ft.

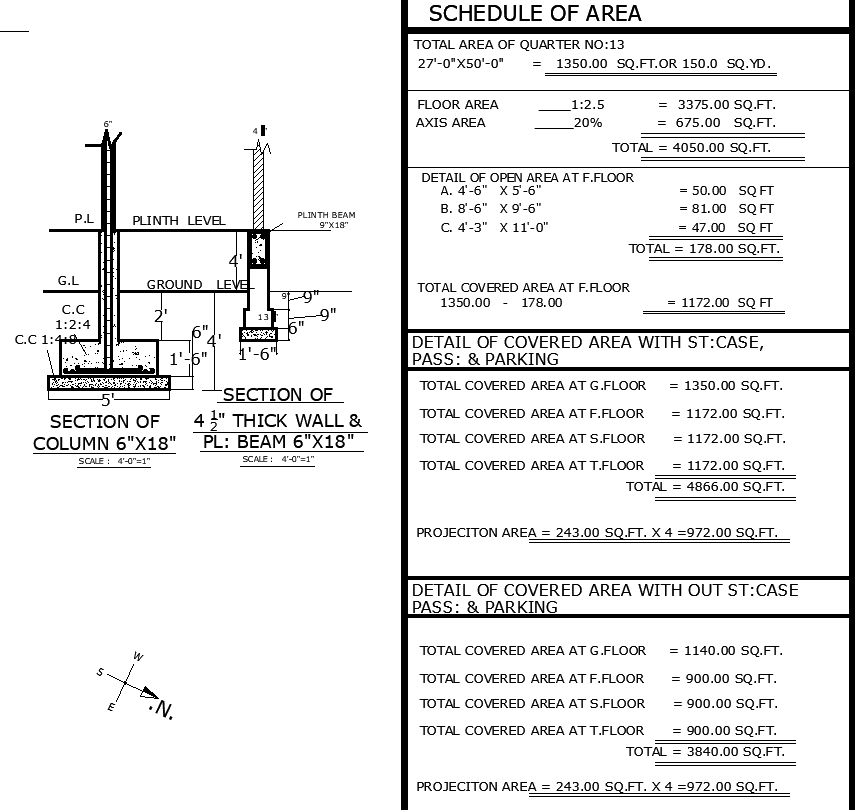

The layout also includes a 9 ft 6 in x 17 ft staircase block, an 11 ft x 5 ft 6 in balcony, and a 4 ft-wide passage. Kitchens and lounges are labelled across upper floors, while the elevation and section show RCC beams of 6 in x 18 in, plinth beams 9 in x 18 in, and a 6-inch slab. The 27 ft x 50 ft site plan and area schedule display covered areas across each floor with detailed RCC reinforcement notes, making this drawing a complete reference for architects, engineers, and interior designers.
