House Plan DWG CAD Design with Rooms Lounge Kitchen and Terrace

This residential cad drawing provides complete ground and first floor plans with all room dimensions clearly marked. The ground floor includes a drawing room measuring 13 ft 6 in x 12 ft, a 12 ft x 13 ft bedroom, an 11 ft 6 in x 13 ft bedroom, a 12 ft x 9 ft 6 in lounge, a 12 ft 6 in x 9 ft 6 in car porch, and an 8 ft x 7 ft 6 in kitchen. Bathrooms are dimensioned 5 ft x 7 ft, 5 ft 6 in x 9 ft 6 in, and ventilation courts of 3 ft 6 in x 7 ft 6 in are positioned for airflow.

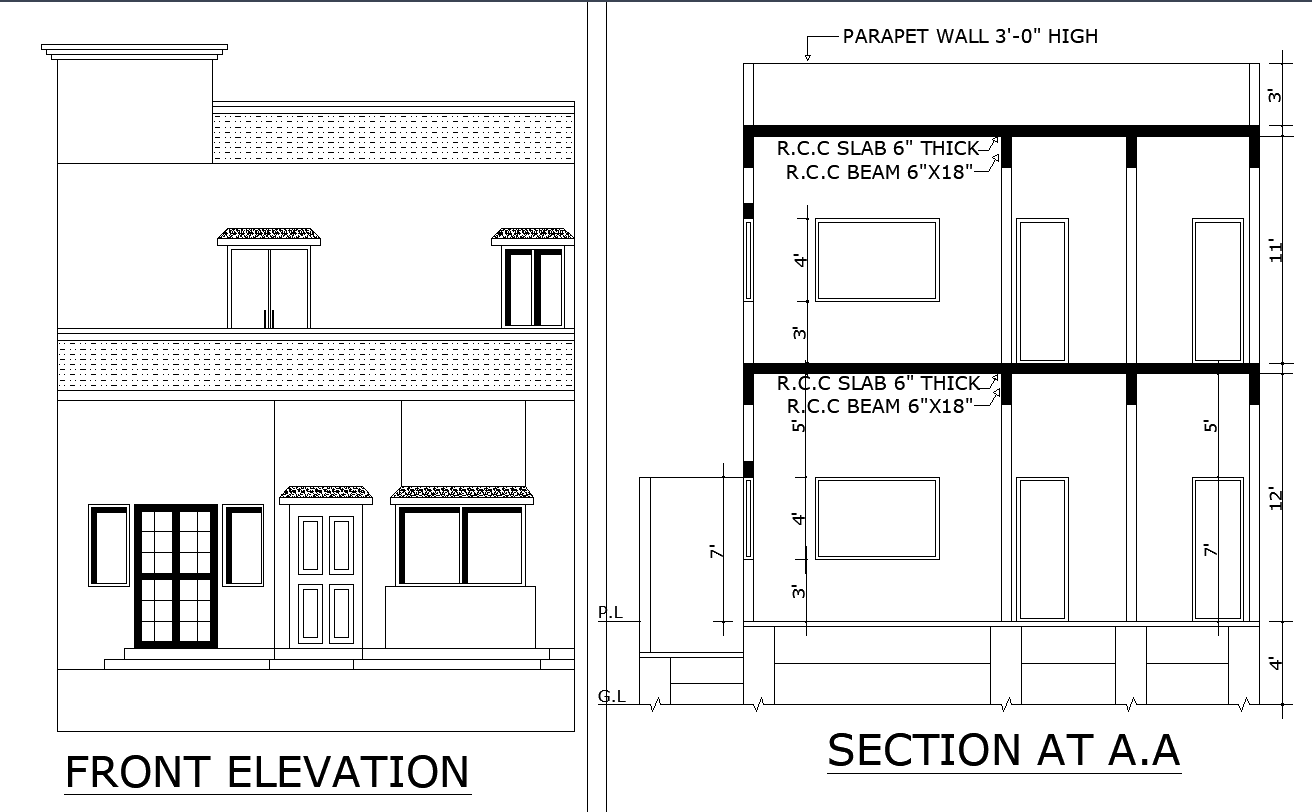

The first floor includes two bedrooms, sized 12 ft x 13 ft and 11 ft 6 in x 13 ft, a 12 ft x 9 ft 6 in lounge, and a large open terrace measuring 24 ft 9 in x 26 ft. Section A-A shows an RCC slab 6 in thick, an RCC beam 6 in x 18 in, a lintel 6 in x 9 in, and a 3 ft parapet wall. The site plan displays a 30 ft x 60 ft plot, while the area plan lists 1193 sq ft covered area at the ground floor and 600 sq ft at the first floor. This drawing provides full architectural and structural clarity for designers and engineers.
