Fifth Floor AutoCAD Subdivision Plan with Flat Layouts 20ft Scale

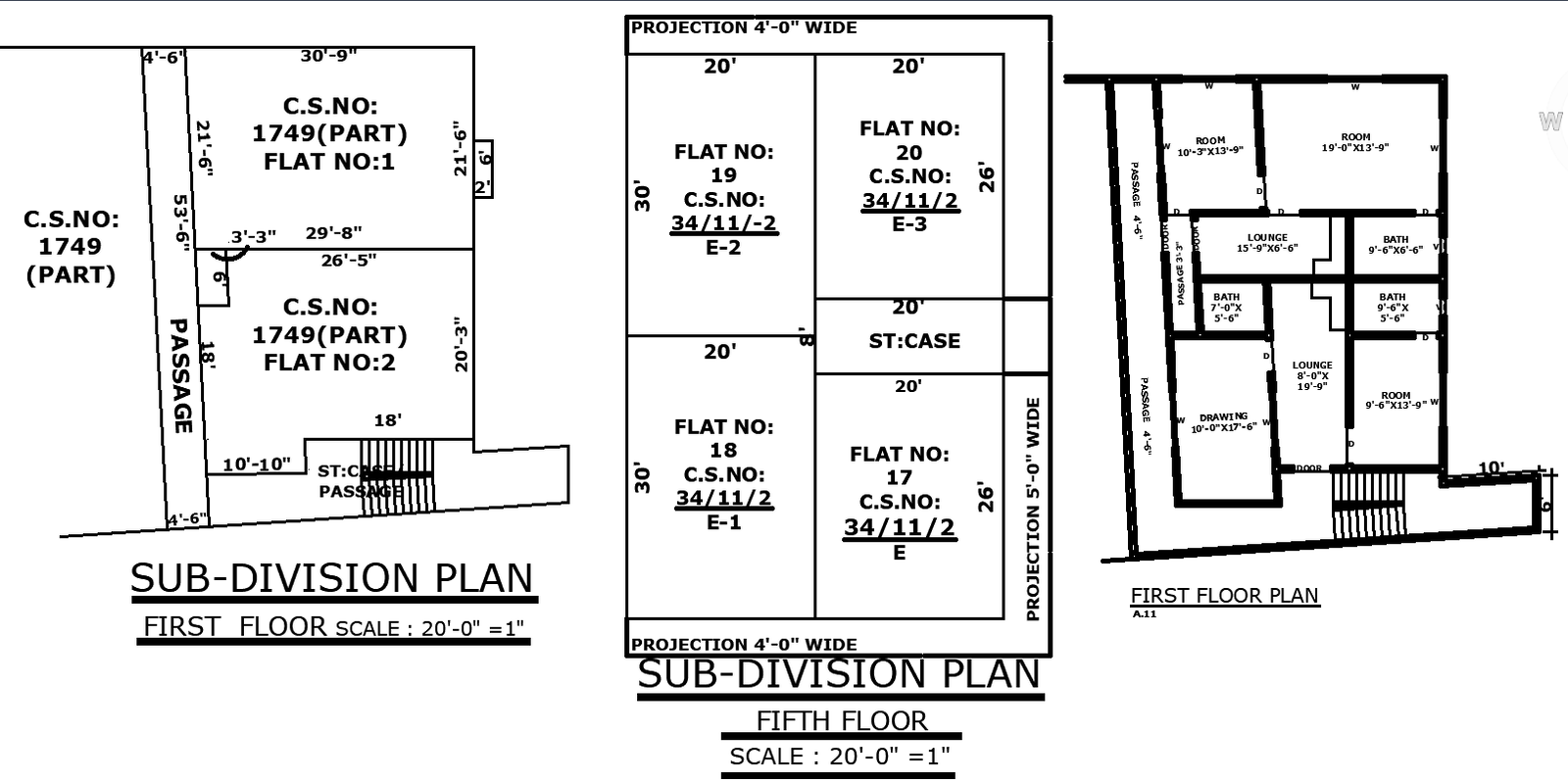

This AutoCAD DWG subdivision plan presents a highly detailed architectural layout of the fifth floor and first floor, created with accurate measurements for professional planning. The drawing features Flat Nos. 17, 18, 19, and 20 arranged within 20 ft by 30 ft structural segments, supported by 4 ft wide projections and clear 6 ft passages that define circulation across the floor. Each unit includes essential room dimensions such as bathrooms sized 9 ft 6 in by 6 ft 6 in and 9 ft 6 in by 5 ft 6 in, spacious rooms measuring 19 ft by 13 ft 9 in, drawing areas of 10 ft by 17 ft 6 in, and lounges dimensioned at 15 ft 9 in by 6 ft 6 in. These specifications help architects and interior designers understand functional zoning effortlessly.

The first floor subdivision includes Flat Nos 1 and 2, mapped with 30 ft 9 in by 21 ft 6 in layouts, 29 ft 8 in spans, 10 ft 10 in access zones, and an 18 ft staircase passage, providing a clear view of space utilization and movement flow. This DWG plan is ideal for architects, civil engineers, builders, and design professionals who require precise, ready-to-use floor planning details for efficient project execution
