House Floorplan AutoCAD Design with Rooms Kitchen Lounge and Bath

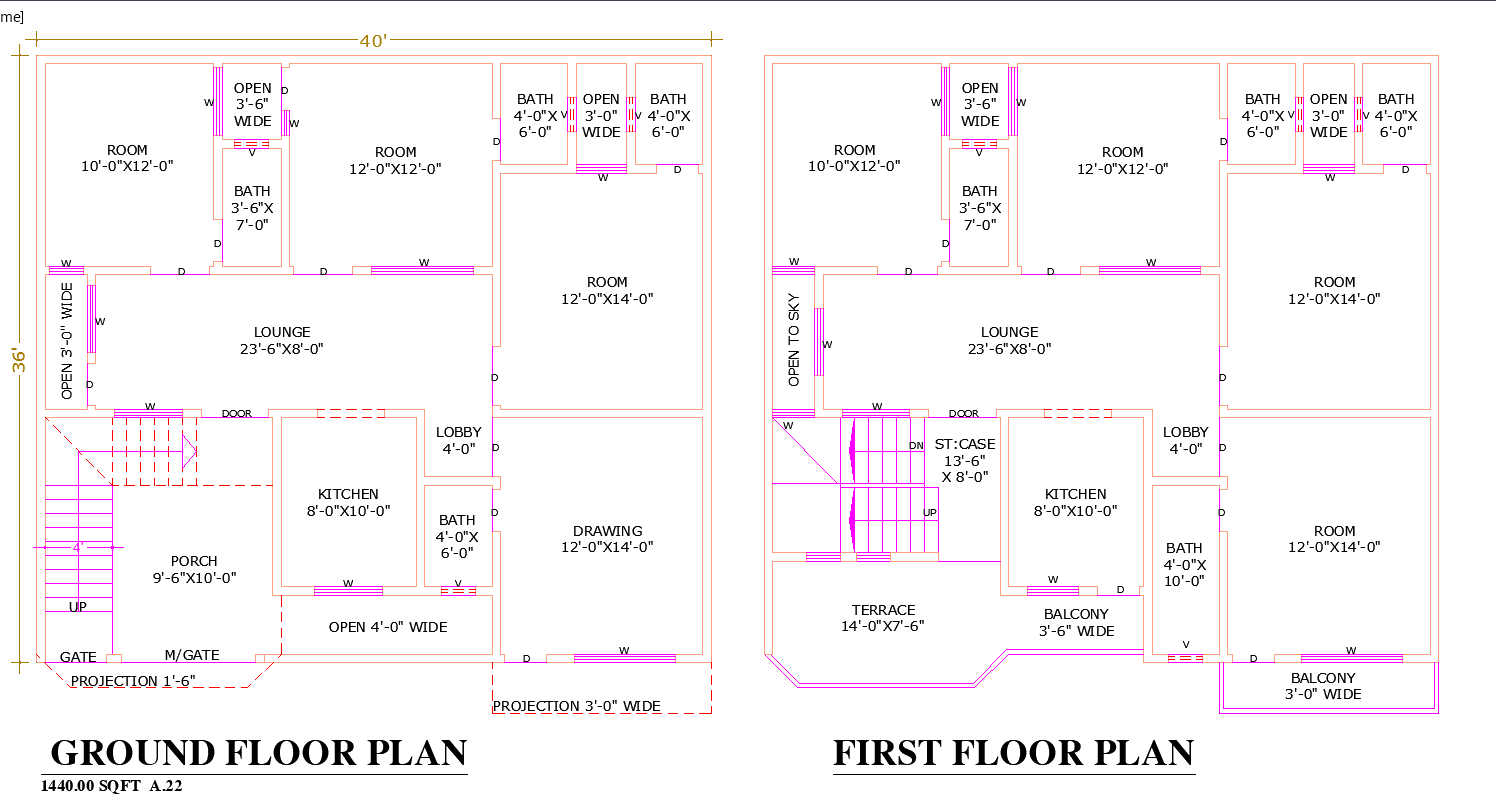

This residential floor plan provides complete ground and first floor layouts with clearly marked room sizes. The ground floor includes 10 ft x 12 ft, 12 ft x 12 ft and 12 ft x 14 ft bedrooms, a 12 ft x 14 ft drawing room, a 23 ft 6 in x 8 ft lounge, and a kitchen sized 8 ft x 10 ft. Bathrooms measure 3 ft 6 in x 7 ft, 4 ft x 6 ft, and 4 ft x 10 ft, arranged beside open-to-sky shafts 3 ft to 4 ft wide. The porch is shown as 9 ft 6 in x 10 ft, and circulation includes a 4 ft lobby with 1 ft 6 in and 3 ft projections.

The first floor repeats room sizes with an additional 14 ft x 7 ft 6 in terrace, 3 ft to 3 ft 6 in balconies, and a staircase block measuring 13 ft 6 in x 8 ft. Door and window placements are marked, along with ventilation openings for cross-airflow. Dimensions are clearly drafted for each space, making this plan useful for architects, civil engineers, and interior designers seeking a well-structured residential reference.
