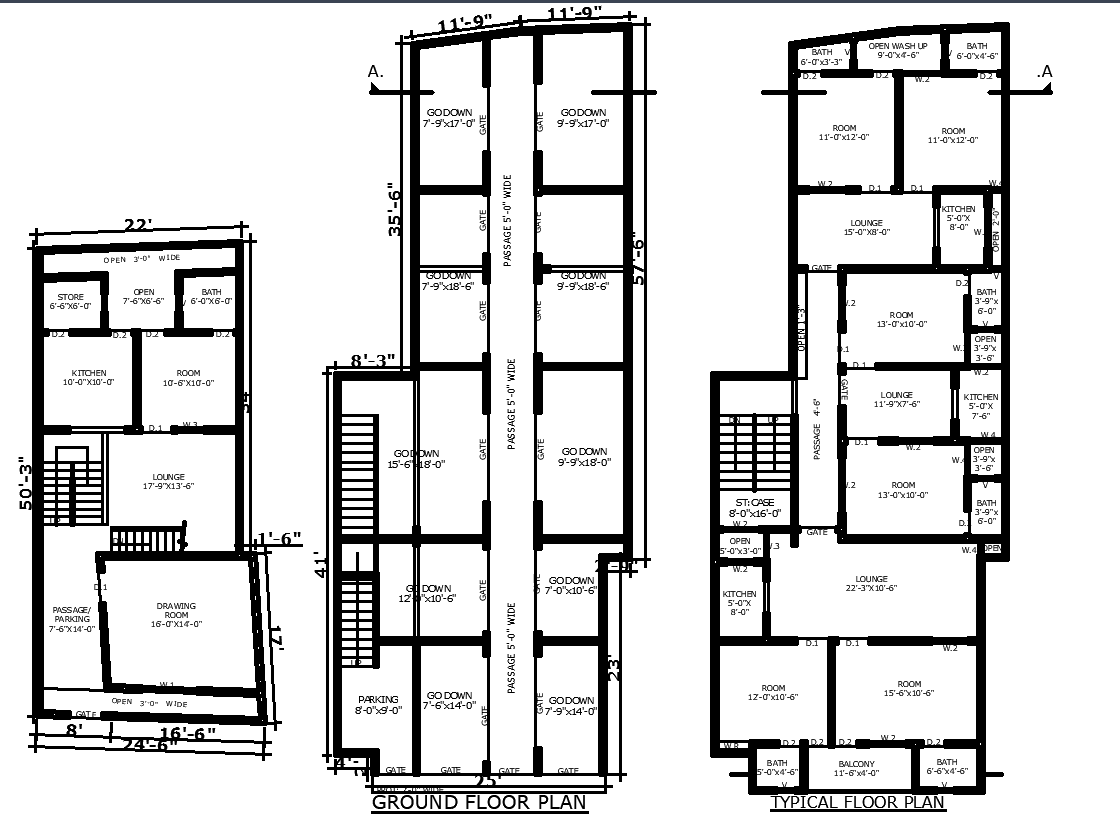

Ground and Typical Floor AutoCAD Plan with Detailed Room Layouts

This AutoCAD DWG floor plan provides a complete architectural layout for both the ground floor and typical upper floors, offering highly accurate measurements useful for architects, civil engineers, interior designers, and builders. The ground floor layout includes a passage and parking zone measuring 7 ft 6 in by 14 ft, a spacious lounge sized 17 ft 9 in by 13 ft 6 in, and a 16 ft by 14 ft drawing room. Additional key areas include a 10 ft by 10 ft kitchen, a 10 ft 6 in by 10 ft room, a 6 ft by 6 ft bath, a 6 ft 6 in by 6 ft store, and open areas with 3 ft wide ventilation spaces and a 7 ft 6 in by 6 ft 6 in open zone. These detailed measurements help professionals understand circulation flow, room planning, and functional placement within the building footprint.

The typical floor plan adds further clarity with an 8 ft by 16 ft staircase block, a 15 ft by 8 ft lounge, two rooms each measuring 11 ft by 12 ft, and a 13 ft by 10 ft room. Additional rooms include a 15 ft 6 in by 10 ft 6 in space, multiple kitchens sized 5 ft by 8 ft and 5 ft by 7 ft 6 in, and several bathrooms ranging from 3 ft 9 in by 6 ft to 6 ft by 4 ft 6 in. The plan also includes go-down units sized 9 ft 9 in by 17 ft and 9 ft 9 in by 18 ft 6 in, along with 5 ft wide passages that support efficient vertical and horizontal circulation. This DWG file delivers the level of detail professionals need to accelerate drafting and prepare accurate project models
