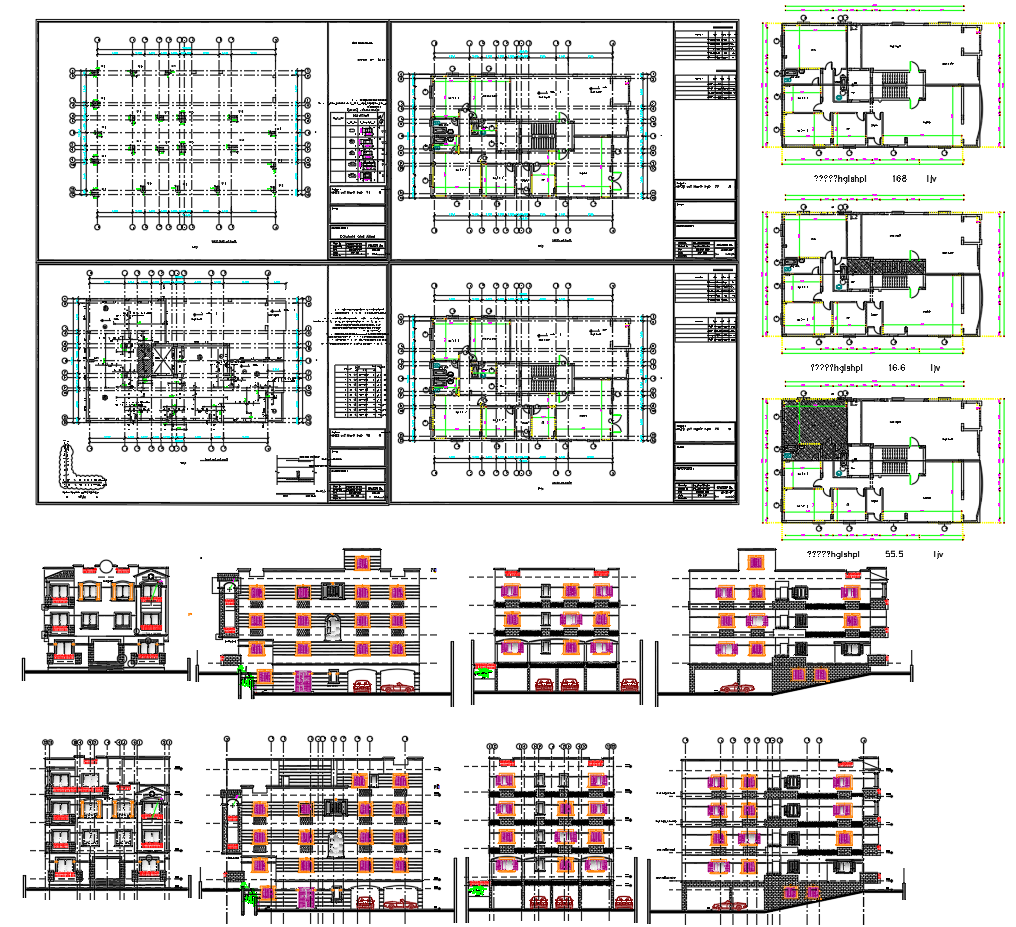

Four Storey Residential Apartment AutoCAD DWG with Stilt Parking Plan

 This AutoCAD DWG file presents a four-storey residential apartment building designed with a dedicated stilt parking level, offering complete clarity for architectural and structural planning. The drawing includes detailed slab layouts, column grid positioning, beam connections, staircase and lift core arrangements, and organized vehicle parking bays at ground level. Elevation sheets show accurate height markers, including +1.20, +4.50, +7.80, +11.00, and +14.00, which define the vertical rise of each floor. The façade features balanced window placements, balcony elements, external projections, and parapet outlines that provide a clear understanding of the building’s overall appearance.

The section views further illustrate the structural alignment between floors, ground-to-roof height transitions, plinth formation, and internal wall positioning, making it easy for architects, civil engineers, interior designers, and builders to interpret the complete building form. This DWG file serves as a reliable reference for professionals working with AutoCAD, Revit, 3D Max, and SketchUp who require accurate residential building drawings.
