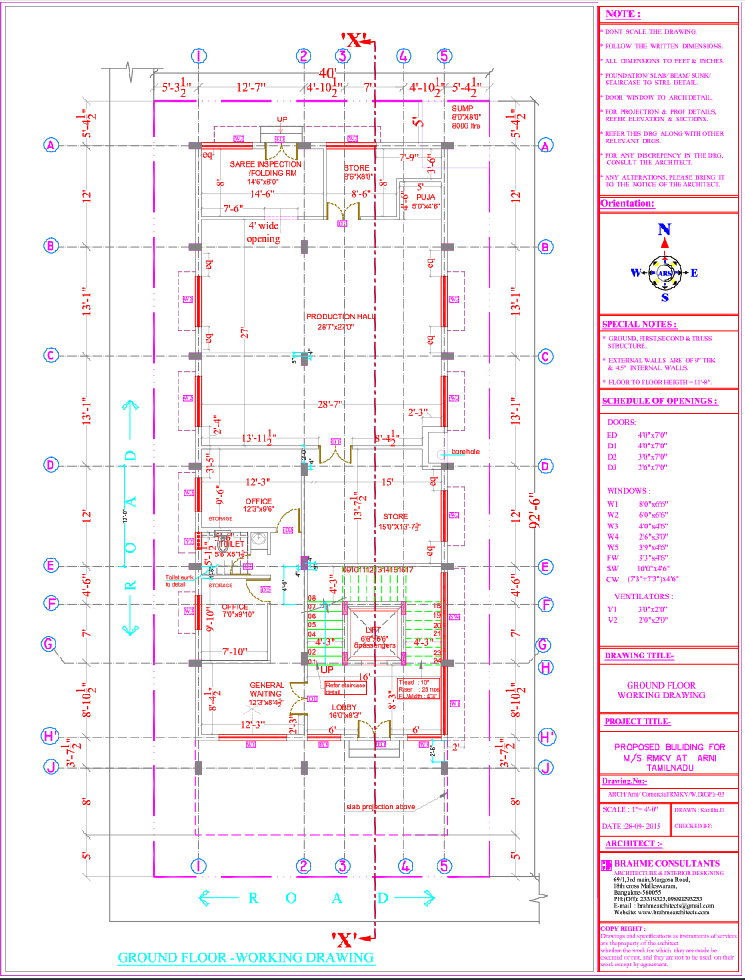

Commercial textile ground floor layout with 92 ft 6 in DWG plan detail

This commercial textile ground floor DWG drawing provides a detailed and accurately measured layout designed for smooth workflow, production efficiency, and structural clarity. The plan features a 92 ft 6 in overall building length with a 40 ft front road line, offering ample access for goods movement. At the centre of the layout is a spacious production hall measuring 28 ft 7 in by 27 ft 0 in, positioned to support continuous textile operations. Supporting rooms include a saree inspection and folding room of 14 ft 6 in by 8 ft 0 in, an 8 ft 6 in by 8 ft 0 in store, and a larger 15 ft 0 in by 13 ft 7½ in storage area, designed for materials and finished products. The layout also incorporates functional workspaces such as 12 ft 3 in by 9 ft 6 in and 7 ft 0 in by 9 ft 10 in office rooms, along with a 12 ft 3 in by 8 ft 4 in general waiting area for staff or visitors. The central lobby, measuring 16 ft 0 in by 8 ft 3 in, ensures smooth internal circulation. Additional elements include a 5 ft 0 in by 4 ft 6 in puja room, 5 ft 6 in by 5 ft 11 in toilet, staircase zone, 8 ft by 8 ft sump with 8000 litre capacity, borehole location, window schedule, door openings, slab projection, and grid references essential for architects and engineers.
