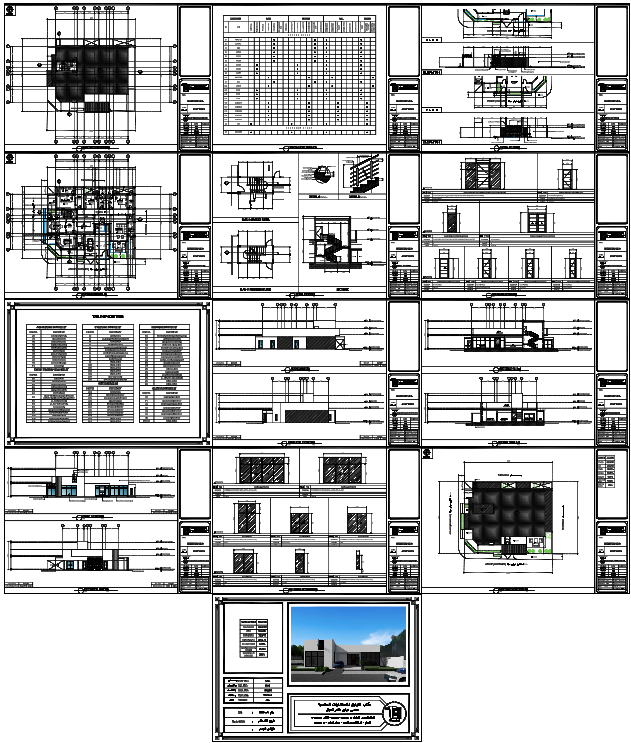

Residential Ground Floor Plan with Detailed Layout Measurements

 This residential architectural plan provides a complete ground floor layout designed for practical space utilisation and accurate construction planning. The drawing includes clearly measured rooms such as the drawing area, dining space, bedrooms, kitchen, dressing room, and attached toilets. Each section is marked with easy-to-read dimensions, allowing architects and designers to understand circulation flow and functional zoning while maintaining optimal structural alignment. Door and window placements are well-defined, ensuring proper ventilation and natural lighting throughout the residential floor area.

In addition to room measurements, the layout highlights porch access, internal connectivity, and the spatial relationship between primary zones. This makes the plan highly useful for builders, contractors, interior planners, and engineering professionals seeking a reliable reference for residential design execution. The drawing supports efficient material estimation, layout verification, and site coordination, ensuring accuracy at every stage of construction. Professionals using AutoCAD, Revit, SketchUp, or similar platforms will find this layout ideal for renovation, new-build projects, or architectural documentation.
