Isometric Piping DWG with Pipe Lengths, Valve Layout, and Weld Details

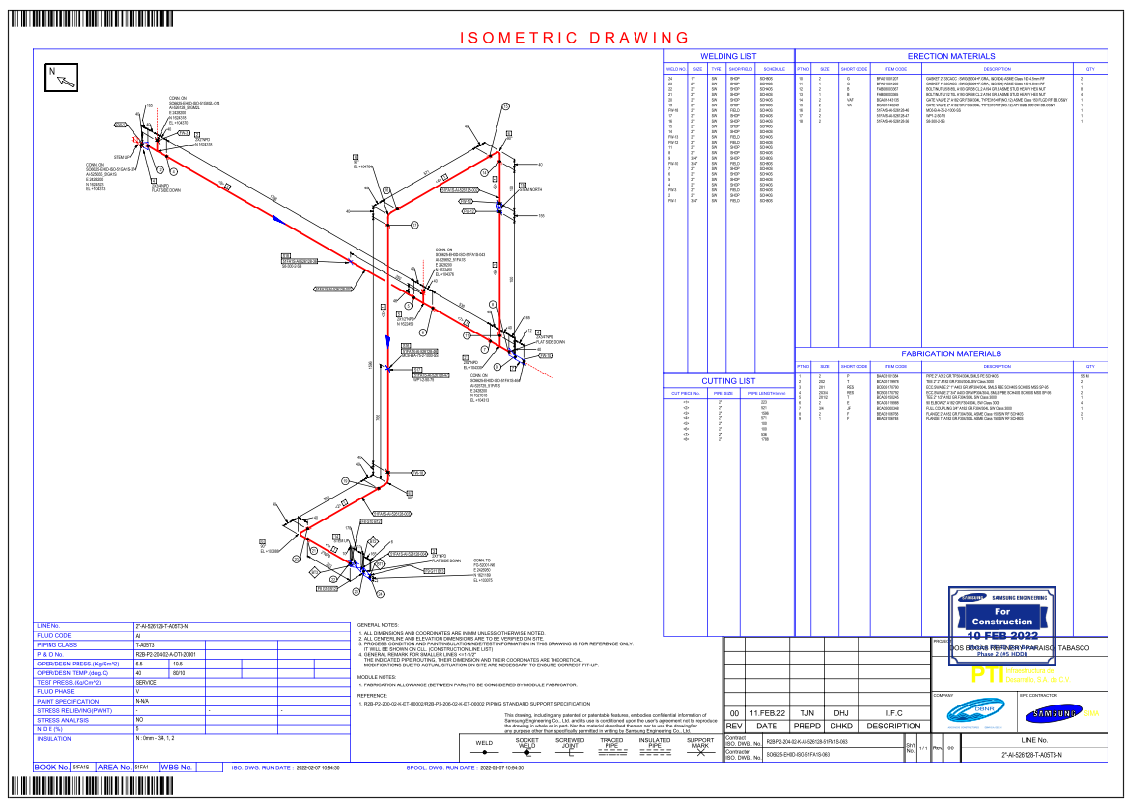

This AutoCAD DWG file provides a detailed isometric piping layout that includes multiple 2-inch SW SCH40S pipe lengths, precise routing angles, and elevation transitions, as shown in the drawing set. The layout displays dimensioned segments such as 223 mm, 521 mm, 1596 mm, 571 mm, 100 mm, 536 mm, and 1788 mm, offering exact material takeoff references. Components, including gate valves, tees, eccentric swages, flanges, gaskets, and bolts, are clearly tagged with item codes and quantities. Field and shop welds such as FW-1, FW-3, FW-10, FW-12, FW-13, and FW-18 are also indicated, supporting accurate fabrication and installation coordination.

The drawing further includes elevation markers like EL +103088, EL +104330, EL +104764, and coordinate points that ensure the piping system aligns with site conditions. The material list, cutting list, and welding schedule provide essential data for construction planning, while the isometric path clarifies flow direction and component arrangement. This DWG is ideal for engineers, architects, and MEP professionals needing a precise isometric piping layout DWG for refinery, industrial, or infrastructure applications, ensuring efficient design, verification, and installation workflow.
