Building Section A A Drawing With Timber Roof And RCC Column

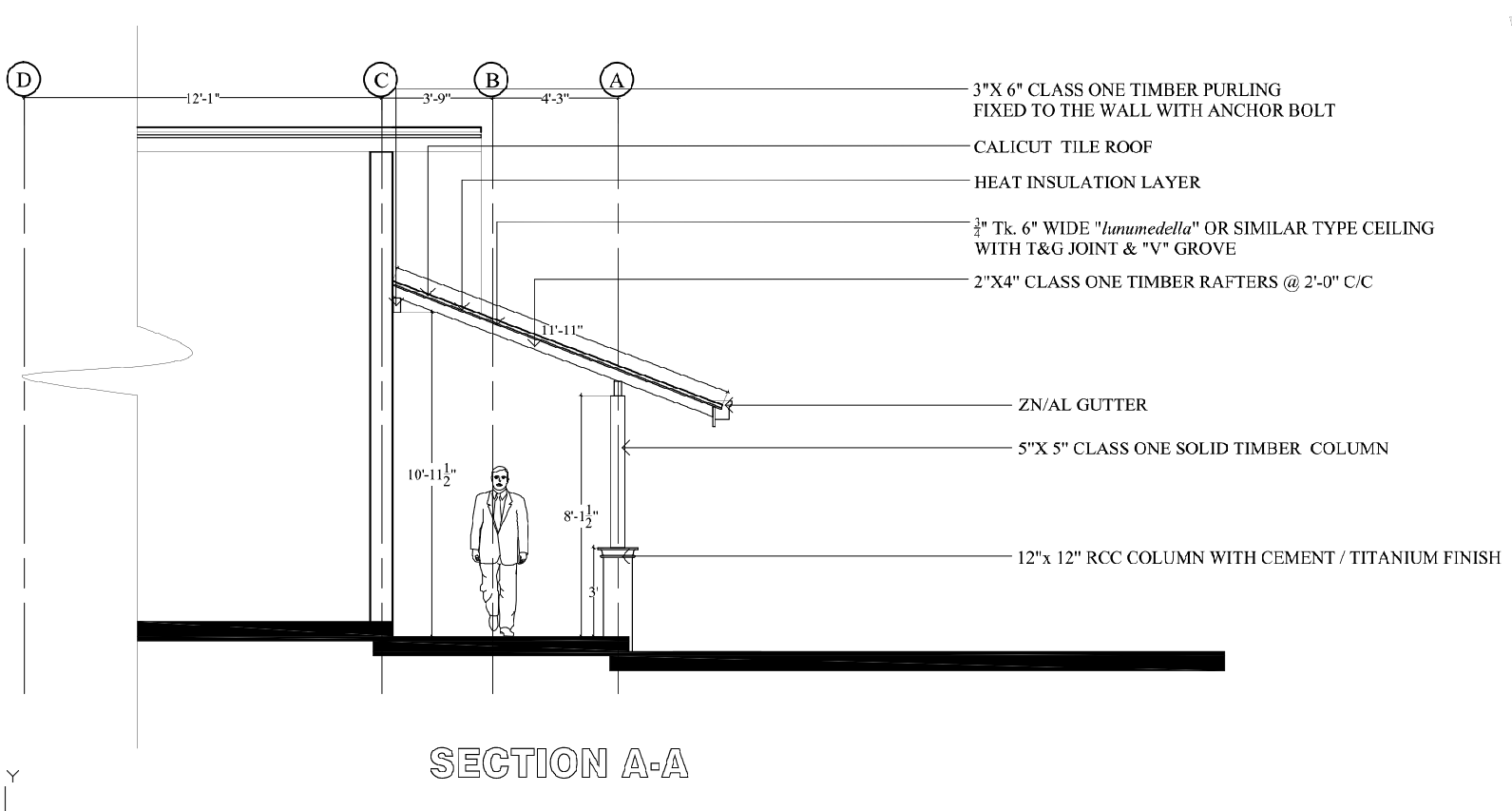

This AutoCAD DWG drawing illustrates a detailed building section A A prepared for architectural and structural coordination. The section clearly represents a sloped roof system constructed with Calicut tiles supported on 3-inch by 6-inch class one timber purlins securely fixed to the wall using anchor bolts. A heat insulation layer is shown beneath the roof covering to improve thermal performance. The ceiling detail includes 4-inch thick and 6-inch wide lunumedella or similar timber boards with tongue and groove joints and V groove finish. The drawing also specifies 2-inch by 4-inch class one timber rafters placed at 2 feet 0 inches center to center, ensuring accurate spacing and load distribution across the roof structure.

The section further highlights vertical structural elements and dimensional relationships within the building. A 5-inch by 5-inch class one solid timber column is detailed alongside a 12-inch by 12-inch reinforced concrete column finished with cement or titanium coating. ZN AL gutter placement, floor levels, roof slope, and clear height dimensions are accurately marked to support construction level understanding. All measurements are provided in imperial units, allowing precise interpretation during execution. This drawing is suitable for architects, civil engineers, builders, and design professionals who require reliable section details for residential or small-scale building construction and technical documentation.
