Waste Bin Enclosure Layout With Section And Elevation AutoCAD Drawing

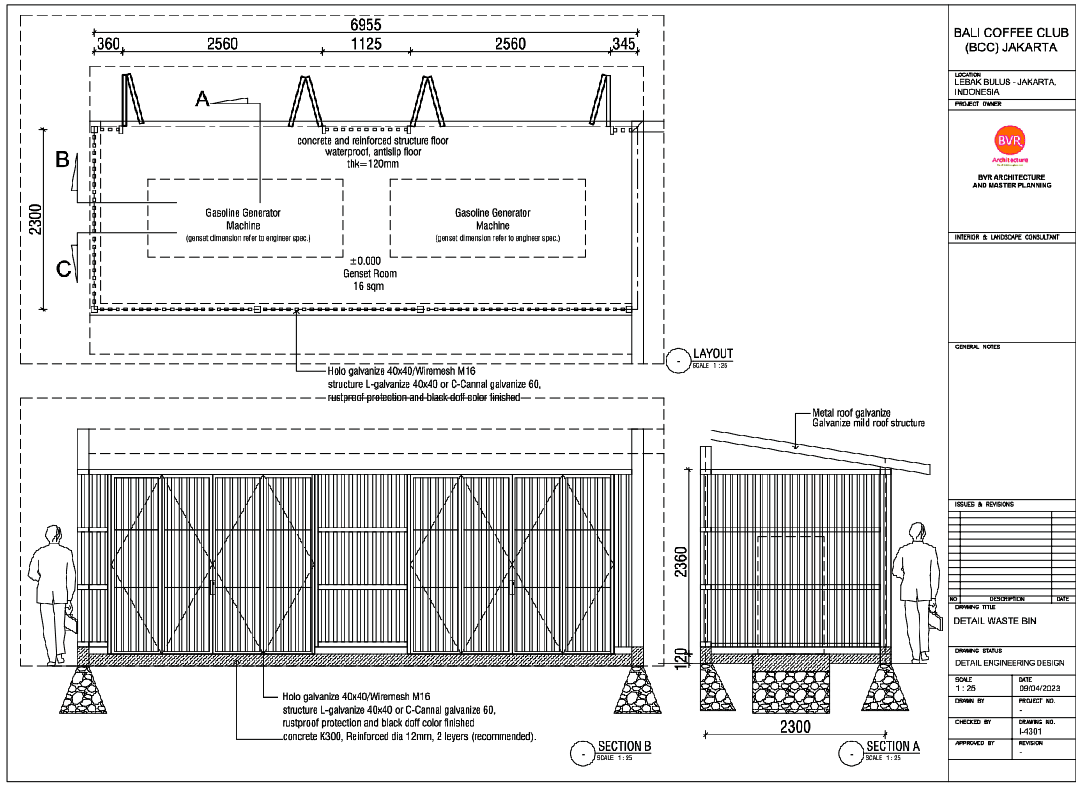

This AutoCAD drawing presents a detailed waste bin structure layout prepared for a commercial facility project. The drawing includes a complete plan layout showing overall dimensions, internal clearance, and placement of gasoline generator machines within the enclosure. Floor construction details such as reinforced concrete slab thickness, waterproof and anti-slip finish, and level markings are clearly specified. Elevation views illustrate the external enclosure form, metal grill arrangement, access opening, and roof profile with a galvanized mild steel structure. These drawings are developed under Architecture documentation and are suitable for site coordination and approval reference in commercial developments such as cafés and service facilities.

The drawing also includes sectional views that explain foundation depth, stone base support, reinforced concrete specification, and structural framing using galvanized steel members. Material notes describe rustproof protection, wire mesh reinforcement, and recommended concrete grades for durability. Dimensional annotations support accurate fabrication and on-site installation. Such detailed drawings are commonly coordinated with Construction Details to guide execution and quality control. The waste bin enclosure design also aligns with Structure Drawing requirements for load support and stability, while supporting implementation workflows followed during Construction for commercial utility and service areas.
