Sunshade Ground And Roof Framing Plan With Pad Footing Details

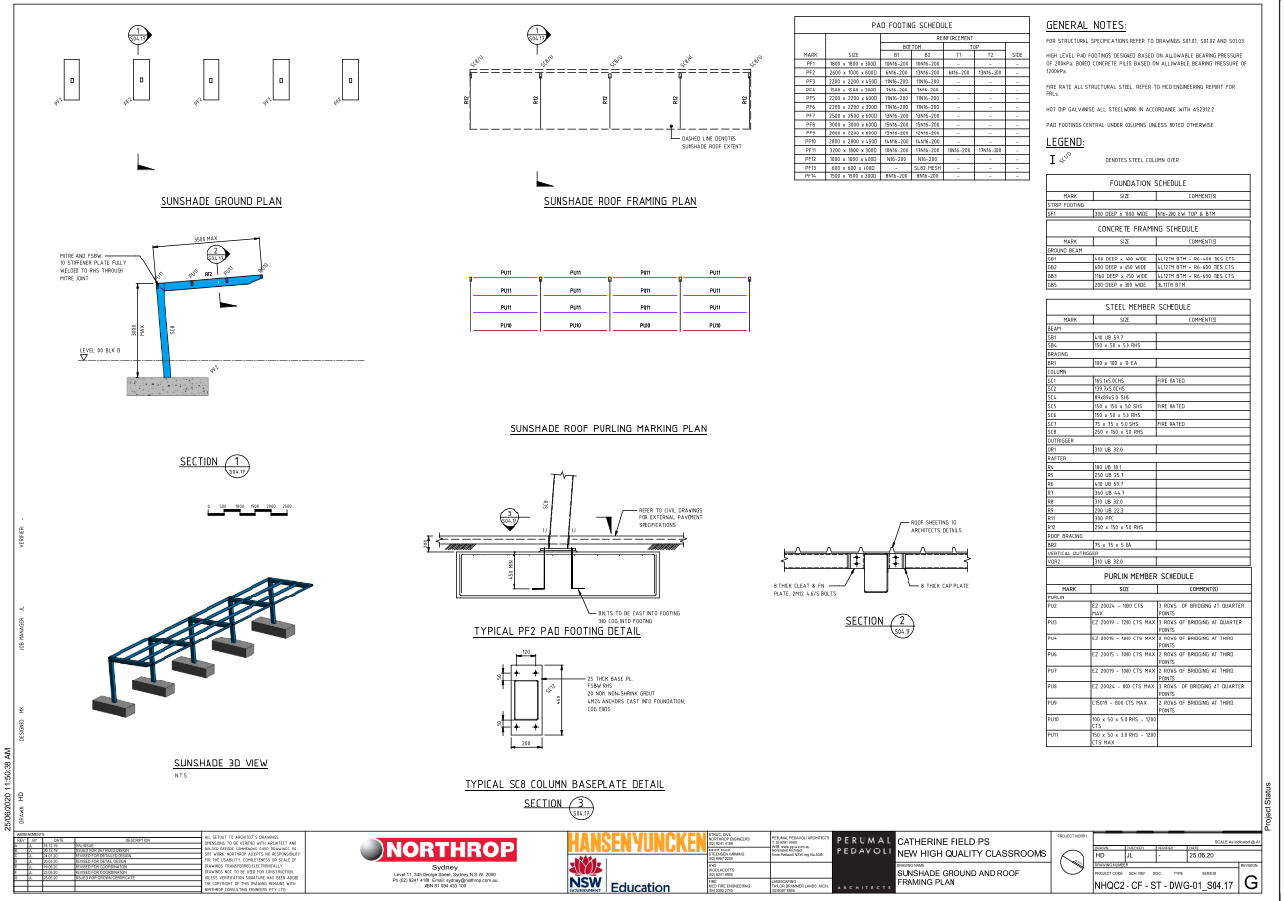

 This AutoCAD drawing provides a detailed sunshade ground and roof framing plan prepared for an educational building project. The layout shows column positions, footing locations, and alignment references required for accurate execution. The roof framing plan illustrates rafter arrangement, beam placement, and the overall sunshade roof extent, along with a roof purlin marking plan that identifies purlin types, spacing, and bridging positions. All dimensions are indicated in millimetres to support precise setting out and site coordination from a structure planning point of view.

The drawing set also includes detailed schedules and sections, such as pad footing schedules with footing sizes, depths, and reinforcement details, typical pad footing sections, and column baseplate details with anchor bolt specifications. Steel member schedules list beams, columns, rafters, bracing, outriggers, and purlins with section sizes and notes. Concrete framing and foundation schedules are provided to assist execution teams during construction. These coordinated drawings offer clear details for sunshade framing, footing layout, and roof support systems, making them suitable for professionals involved in structural layout preparation and site implementation.
