Tailings Storage Facility TSF Layout Plan With Sections And Details

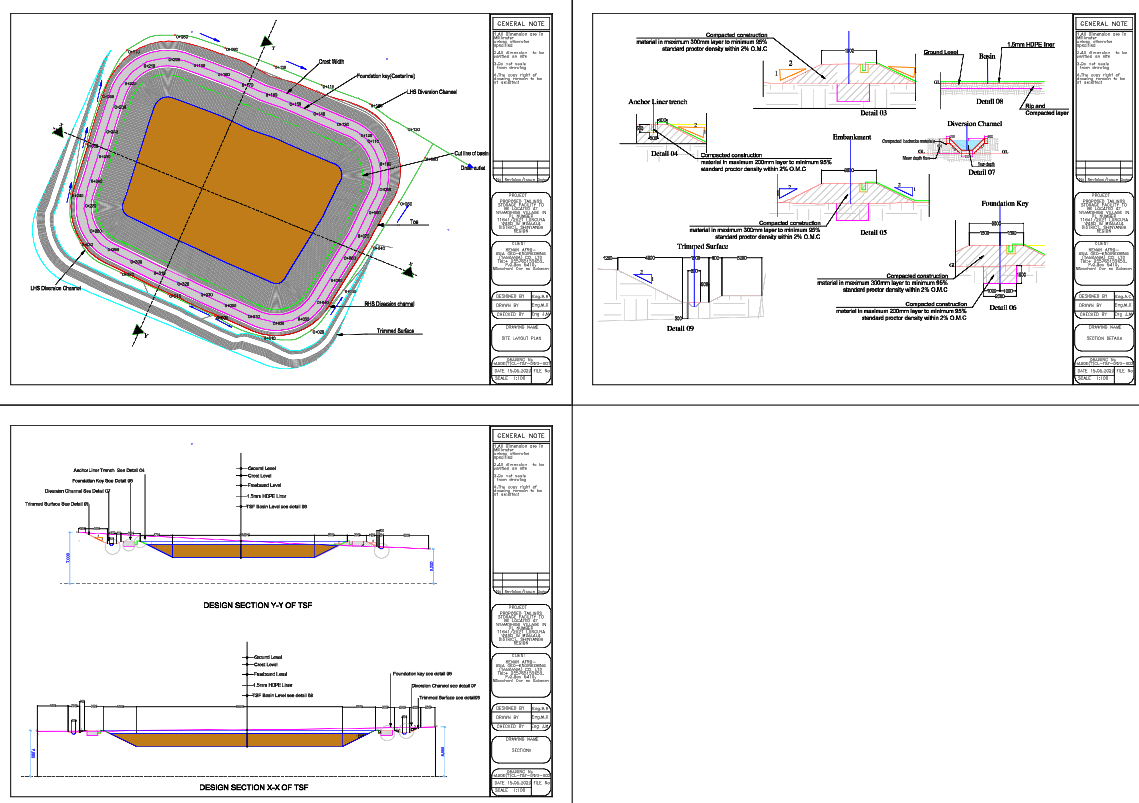

This AutoCAD DWG drawing presents a complete Tailing Storage Facility TSF layout prepared with detailed engineering precision for large-scale civil and infrastructure projects. The drawing includes a clearly defined TSF plan showing embankment geometry, internal storage zone, crest width alignment, toe configuration, diversion channels, and trimmed surface profiles with accurate dimensional references. Levels, offsets, slope indications, and boundary markings are provided to support proper site grading and containment planning. The layout is suitable for earthwork quantity estimation, alignment verification, and construction coordination.

The drawing set also contains design sections X X and Y Y of TSF, illustrating ground level, crest level, foundation key details, embankment layers, anchor liner trench, compacted construction material thickness, drainage channels, and trimmed surfaces. Typical construction details specify material compaction density, layer thickness in millimeters, foundation preparation, and drainage control arrangements. These AutoCAD drawings are ideal for civil engineers and designers requiring editable DWG files for TSF design validation, structural detailing, and execution level documentation in AutoCAD-based workflows.
