Second Floor Kitchen Layout Drawing With Island And Appliance Setup

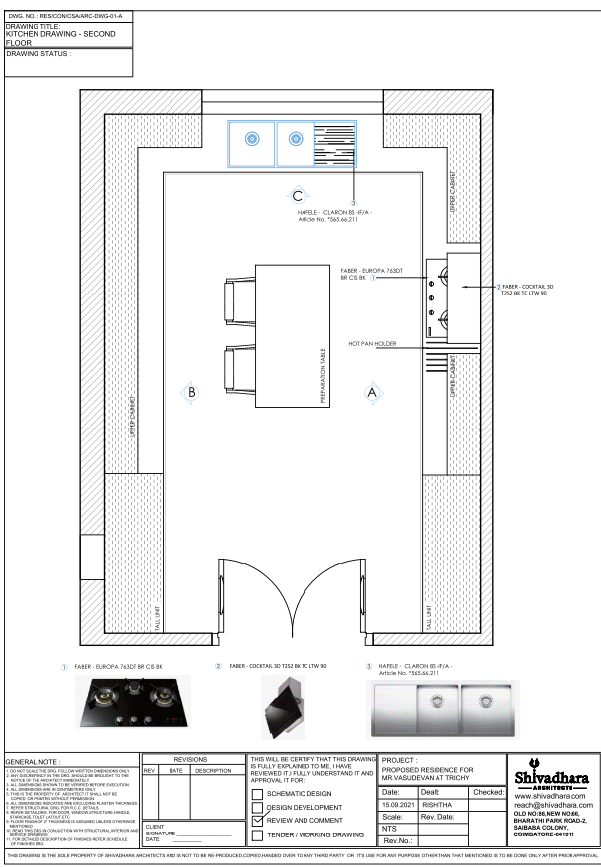

This AutoCAD DWG drawing illustrates a well-planned second-floor kitchen layout designed for residential use, focusing on functional zoning and efficient workflow. The plan clearly defines the preparation island, sink position, cooking hob, chimney location, and appliance alignment along the kitchen walls. Cabinet placement, tall units, and storage zones are arranged to ensure smooth movement and practical usability. Door swing direction and internal clearances are carefully coordinated to support daily kitchen operations. The drawing is prepared with accurate proportions and equipment references suitable for design development and execution.

The layout supports Kitchen Interiors planning by presenting a balanced arrangement of work zones and storage elements. This Interior Design drawing helps architects and interior professionals visualize appliance coordination and countertop planning within a compact floor area. The DWG format allows easy customization, measurement checks, and integration with architectural floor plans. Ideal for residential projects, this drawing serves as a reliable reference for layout approval, material coordination, and on-site execution aligned with functional kitchen design standards.
