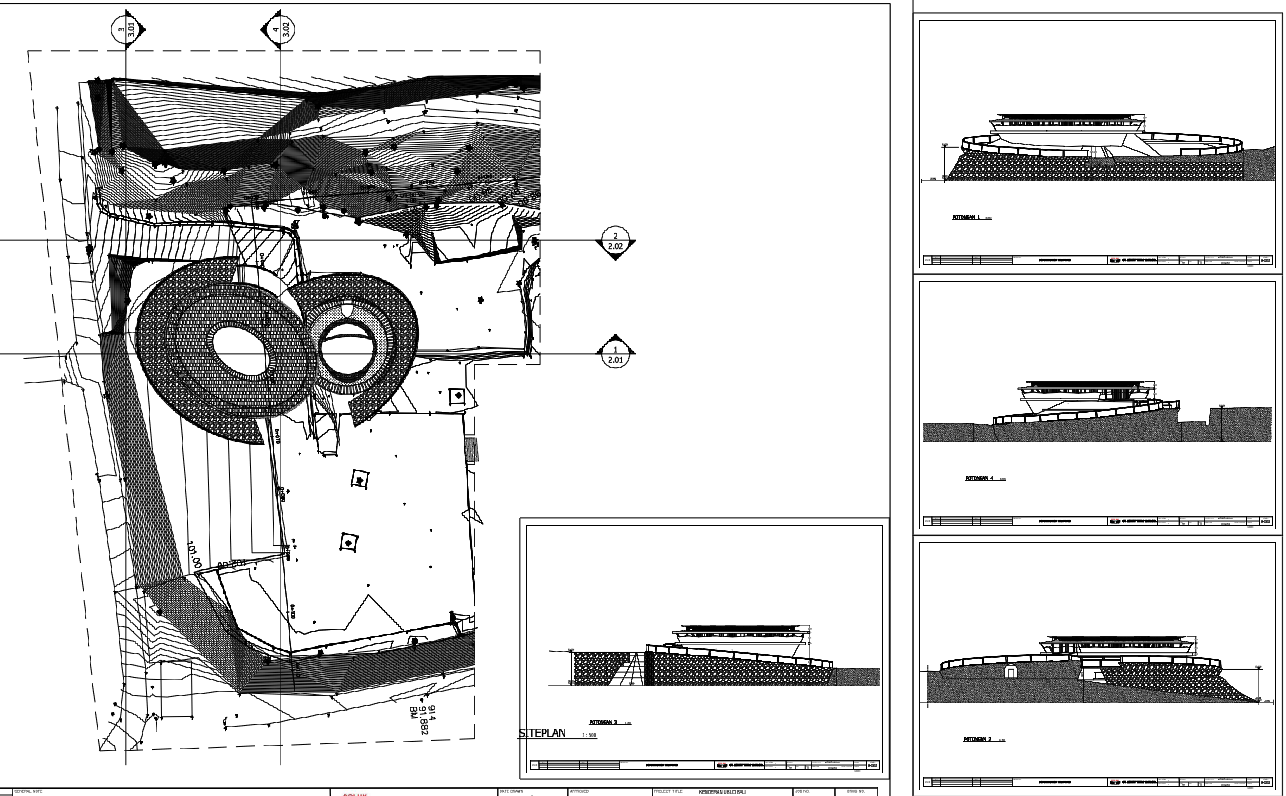

Architectural Site Grading and Contour Plan with Sections Elevations

This drawing presents a detailed site plan combined with building section layouts prepared for architectural planning and terrain coordination. The plan shows the overall footprint, curved structural forms, surrounding ground profile, and contour representation to explain site conditions. Section views illustrate level differences, retaining edges, and the relationship between built form and natural ground. Clear annotations help in understanding spatial arrangement and elevation transitions within the site. This drawing supports planning clarity for outdoor and built integration and is suitable for professional documentation under Urban Design-related planning requirements. Site organization and form coordination also assist during early project planning stages.

The drawing further explains construction intent through sectional clarity and level alignment references. Retaining structures, base formation, and stepped ground profiles are represented to support execution understanding. Coordination during implementation is supported through Structure Drawing, helping align built elements with site conditions. Additional execution clarity is provided using Construction Details, which assist in understanding how site levels and structural edges are resolved on site. This drawing is useful for architects and planners preparing coordinated CAD documentation for site development and sectional planning.
