Single Storey Residential House with Cross Hipped Roof Plan DWG

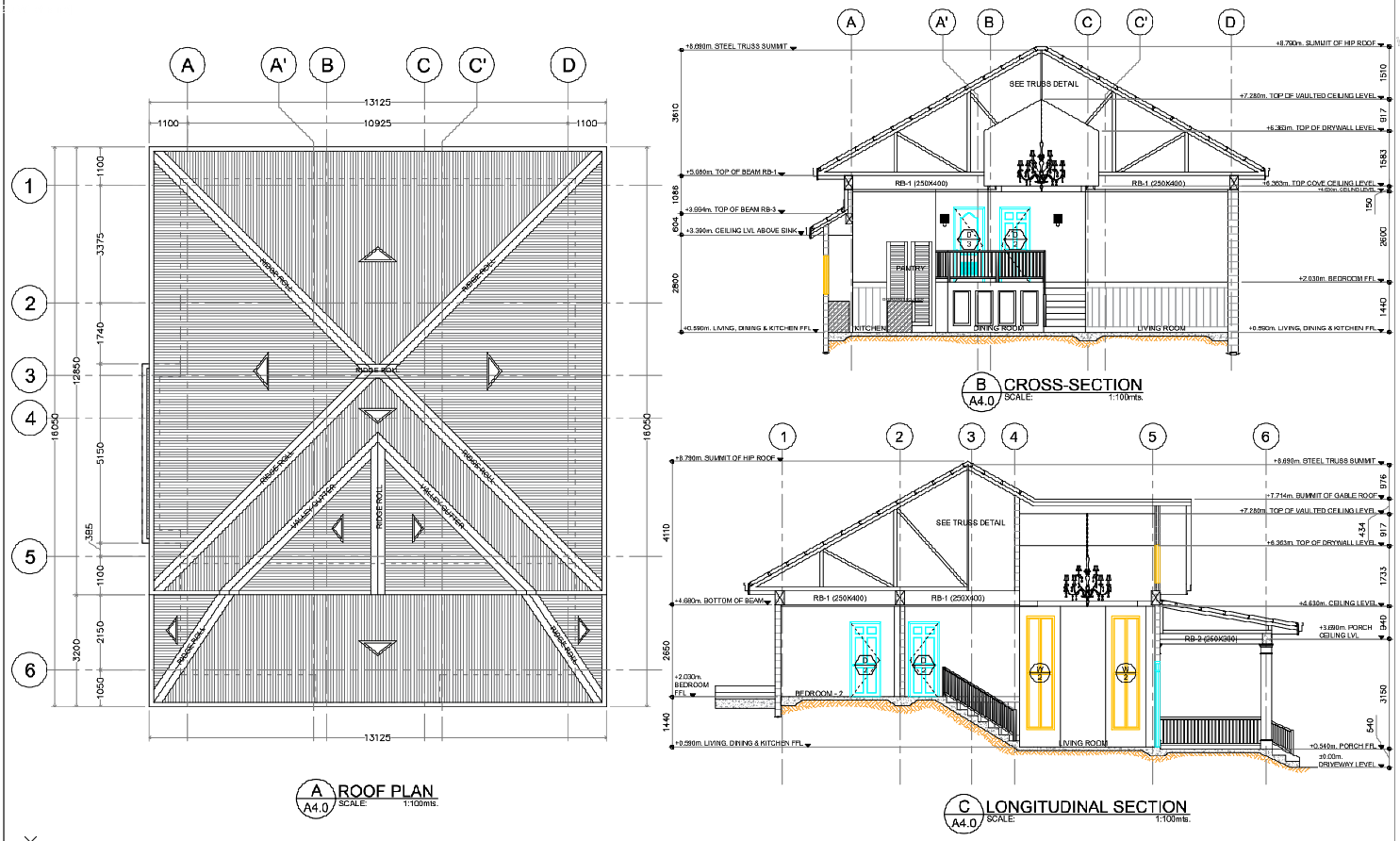

This AutoCAD DWG drawing file provides a complete and professionally detailed roof plan and building sectional drawings prepared at a 1:100 scale, ideal for architectural and construction use. The drawing includes a roof plan, cross section, and longitudinal section with clearly marked structural and architectural details. It covers accurate level annotations such as living, dining, kitchen finished floor level at plus 0.590 meters, bedroom finished floor level at plus 2.030 meters, ceiling levels, drywall levels, vaulted ceiling height, beam top and bottom levels, steel truss summit at plus 8.690 meters, and hip roof summit at plus 8.790 meters.

Structural elements like reinforced beams RB 1 250x400 and RB 2 250x300 are clearly shown along with truss references, ridge roll, valley gutter, and roof geometry. This roof plan AutoCAD DWG file is suitable for architects, civil engineers, builders, interior designers, and professionals working with AutoCAD, Revit, 3ds Max, and SketchUp who need accurate drawing content for residential roof design, coordination, and execution.
