Machine Foundation Detail Drawing With H Beam 200 And K300 Concrete

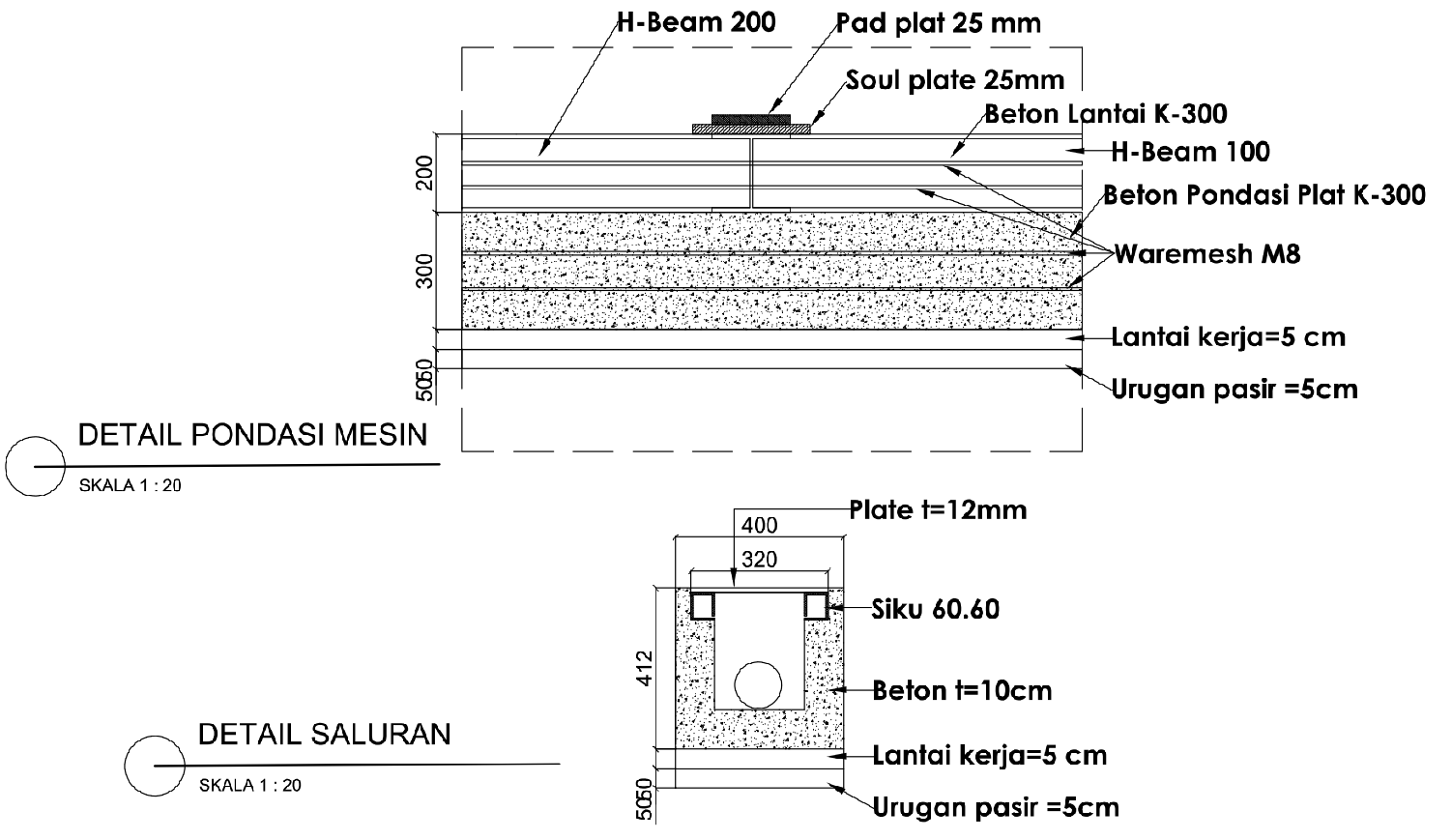

This AutoCAD DWG drawing presents a detailed machine foundation and drainage layout prepared at scale 1:20. The drawing includes a machine foundation detail using H Beam 200 and H Beam 100 supported on K300 grade concrete. The pad plate and sole plate are specified at 25 mm thickness, while the base plate thickness is 12 mm. The foundation consists of a 300 mm thick concrete layer reinforced with wiremesh M8, resting on a 5 cm working floor and 5 cm sand bedding.

Overall vertical depth is shown as 5050 mm. The drainage detail illustrates a concrete channel with 400 mm outer width, 320 mm clear width, 412 mm height, 10 cm concrete thickness, angle steel 60 by 60, and identical working floor and sand layers. This DWG file is suitable for industrial machine installation, foundation planning, and construction execution reference.
