Residential Ground Floor Plan Drawing for 2147 Sqft Plot Area House

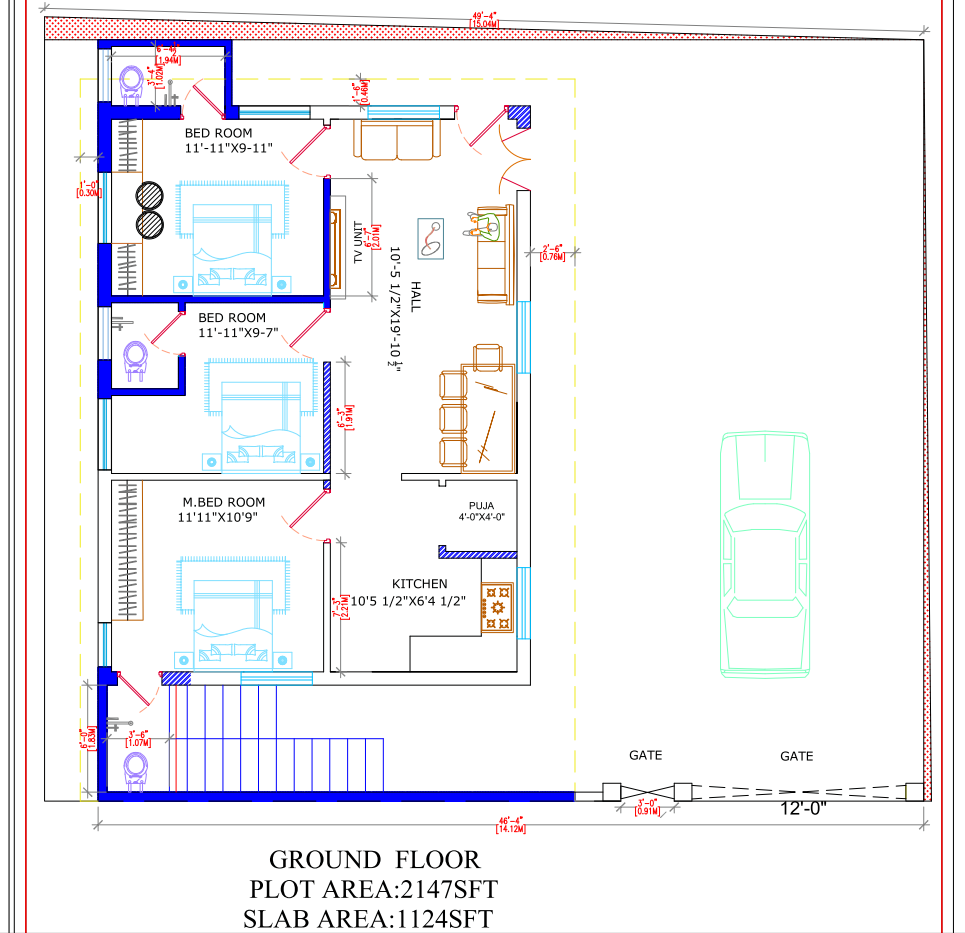

This residential ground floor plan drawing is provided as an AutoCAD DWG file and is designed for a plot area of 2147 square feet with a total slab area of 1124 square feet. The ground floor plan shows a clear internal layout including three bedrooms, a central hall, kitchen, puja room, toilets, stairs, and oan pen parking space. Two bedrooms measure 11 feet 11 inches by 9 feet 11 inches and 11 feet 11 inches by 9 feet 7 inches, while the master bedroom measures 11 feet 11 inches by 10 feet 9 inches. The hall is centrally positioned with a size of 10 feet 5 and a half inches by 19 feet 10 and a half inches, providing direct access to all rooms.

The kitchen size is 10 feet 5 and a half inches by 6 feet 4 and a half inches, and is connected to a puja room measuring 4 feet by 4 feet. The house plan drawing also includes wall thickness, door swing directions, toilet locations, staircase positioning, compound boundary, setbacks, and a 12-foot-wide entrance gate with designated car parking. All dimensions are clearly marked in feet and inches, making this AutoCAD DWG ground floor house plan suitable for construction drawings, planning approval, and residential layout reference.
