Ruang RO Shop Drawing With Floor Plan Elevation and Structure

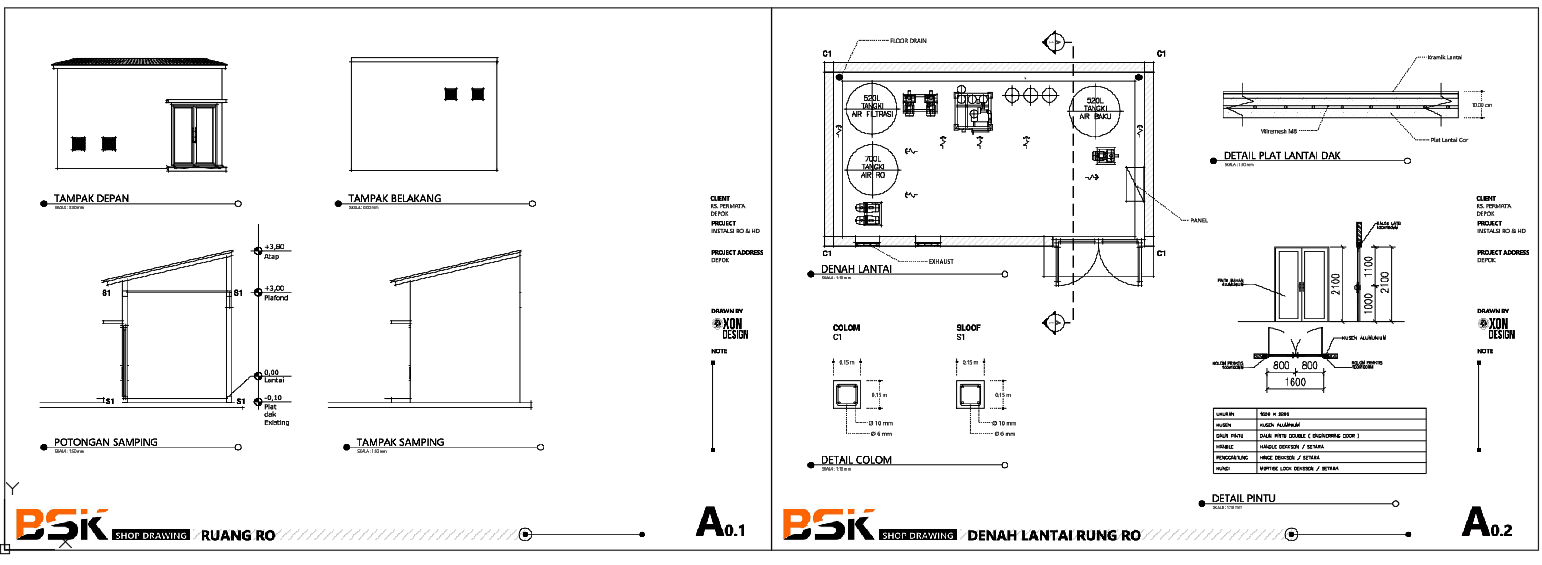

This AutoCAD DWG shop drawing presents a detailed Ruang RO layout, including floor plan, front and rear elevations, side elevations, and sectional views. The denah lantai shows RO equipment placement with 520-liter and 700-liter tanks, filtration zones, exhaust layout, and clear circulation paths.

Structural details include column C1 and sloof S1 dimensions at 150 x 150 mm with reinforcement notes, roof slope levels at plus 3.80 meters, ceiling level at plus 3.00 meters, and existing slab reference at minus 0.10 meters. The drawing also provides the plat lantai dak details with ceramic finish, wiremesh reinforcement, and slab thickness specification. Door details indicate a 1600 x 2200 mm aluminum double engineering door with hardware specifications. All drawings are scaled accurately for construction coordination and site execution.
