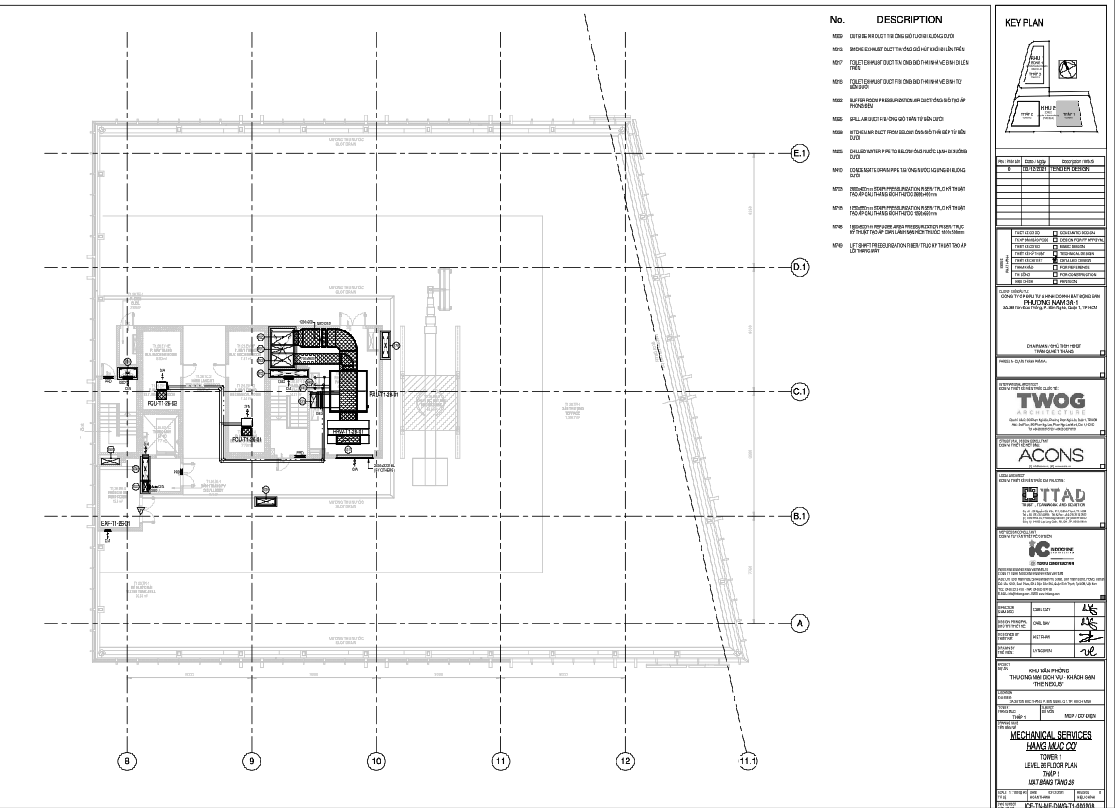

Level 26 Mechanical Services Layout with Duct Sizes and Equipment

This AutoCAD DWG drawing shows a detailed mechanical services layout for Level 26, focusing on HVAC, ventilation, and service coordination within a high-rise building floor. The plan clearly identifies functional spaces such as the PAU room measuring 43.82 square meters, multiple elevator machine rooms ranging from 7.36 to 8.09 square meters, a mechanical room of approximately 7.44 square meters, and a technical corridor measuring about 30.37 square meters. The terrace area is defined with a total area of nearly 1318.7 square meters, along with a dedicated water tank area of 26.66 square meters and a pump room of 13.3 square meters. Grid lines, column references, and shaft positions are accurately marked to support coordination with architectural and structural layouts.

The drawing also details mechanical equipment and duct routing, including FCU units, PAU unit PAU T1 26 01, exhaust air fans, outside air ducts, smoke exhaust ducts, and pressurization risers. Duct and riser sizes such as 1200x800 mm, 700x1600 mm, 2600x400 mm, and 1250x650 mm are clearly indicated for execution clarity. Slot drain locations around the terrace perimeter are marked for water management. This layout supports engineers and designers in coordinating mechanical systems, equipment placement, and service clearances with precise metric dimensions with reference to cable tray installation detail CAD drawings that demonstrate similar standards of service routing coordination, dimensional clarity, multi-discipline integration, and construction-ready MEP documentation.
