Existing Banking Hall Floor Layout With Ramp Facade And Section

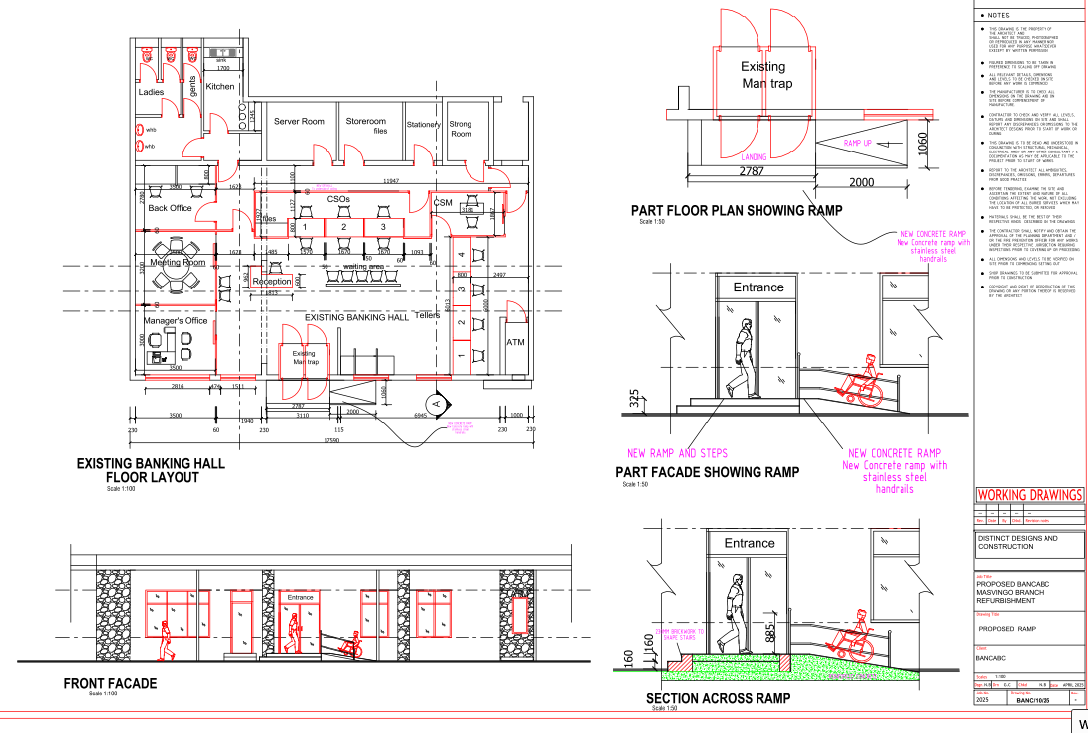

This AutoCAD DWG drawing presents a detailed existing banking hall floor layout with proposed accessibility improvements and internal planning coordination. The plan illustrates clearly defined functional spaces including teller counters, CSO desks, customer waiting area, reception, manager's office, meeting room, back office, server room, storeroom, stationery room, strong room, kitchen, ladies' and gents' toilets, and ATM zone. Circulation widths, door swings, wall thicknesses, and furniture placement are accurately shown to support refurbishment planning. Dimensions such as 17590 mm overall internal width, individual room widths like 3500 mm, 3000 mm, and corridor clearances of 115 mm and 230 mm are marked to ensure precise spatial coordination. The layout also identifies the existing man-trap location and its integration within the banking hall workflow.

The drawing further includes a part floor plan, facade, and section details showing a new concrete ramp designed for barrier-free access. Ramp dimensions such as 2000 mm length, 1060 mm width, and landing width of 2787 mm are clearly annotated. Part facade and section across ramp illustrate level differences, step heights, ramp slope, and reinforced concrete construction with stainless steel handrails. The front facade elevation presents entrance alignment and glazing layout for visual continuity. All drawings are scaled appropriately at 1:100, and 1 is to 50 where required, with dimensions provided in millimetres and intended to be followed as written. This drawing is suitable for architects, civil engineers, interior designers, and builders involved in banking hall refurbishment, accessibility upgrades, and coordinated execution.
