Typical Floor Plan 61x37 Apartments Layout AutoCAD DWG Files

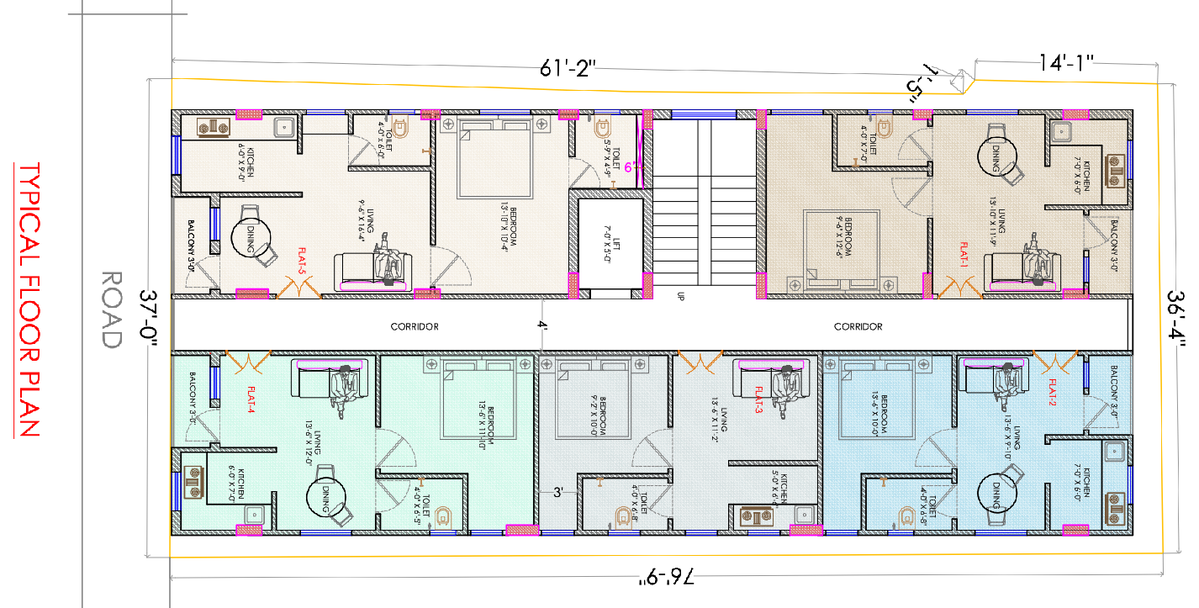

This AutoCAD DWG file presents a complete apartment plan and floor plan for a residential building with an overall size of 61’-2” x 37’-0”. The typical floor plan dwg includes five flats (Flat 1 to Flat 5) arranged along a central 4’-0” wide corridor, ensuring efficient circulation. Each unit features a defined living and dining area, kitchen, bedroom, toilet, and 3’-0” balcony, with room dimensions such as living spaces around 13’-6” x 12’-0”, bedrooms up to 13’-10” x 10’-4”, and toilets ranging from 4’-0” x 6’-0” to 5’-9” x 4’-9”. A 7’-0” x 5’-0” lift and staircase core is centrally positioned for vertical access. This residential layout drawing is ideal for architects and engineers working on compact multi-unit housing, providing accurate wall layouts, door swings, room labeling, and circulation planning. The file is optimized for modification in AutoCAD and supports fast project execution for apartment and housing developments, with reference to three-storey residential home terrace layout drawings commonly prepared in DWG format for coordinated multi-level residential planning and execution.
