Complete Floor Plans with Electrical and Brickwork Details AutoCAD DWG

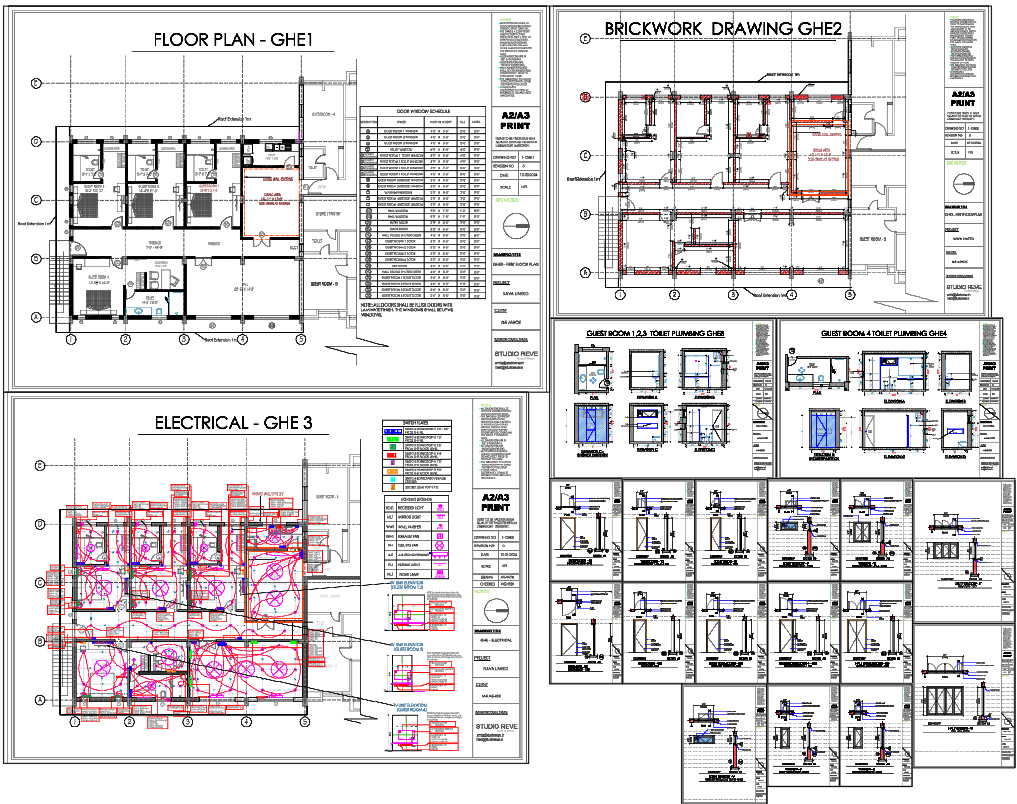

This AutoCAD DWG file includes detailed floor plans, brickwork drawings, and layouts for a residential building. It provides precise measurements and structural details for each floor, including room layouts, plumbing, and electrical systems. The floor plan outlines the room arrangements, staircases, doors, and windows, along with the plumbing details for guest rooms. The brickwork drawing illustrates wall structures, while the electrical layout shows the distribution of wiring and power outlets for each room. These comprehensive details ensure the design meets functional and aesthetic standards. The file also includes additional construction details, such as door and window schedules, and specific measurements for accurate implementation. This file is an essential resource for architects, builders, and engineers working on residential buildings, providing all necessary documentation for the successful execution of the project. The included layout and technical details make this AutoCAD file invaluable for those needing to visualize and plan electrical and structural elements before construction, with reference to panel and metering layout drawings prepared in CAD format for coordinated planning and execution-ready documentation.
