Detail Bathroom Design with AutoCAD Drawing for Educational Facilitie

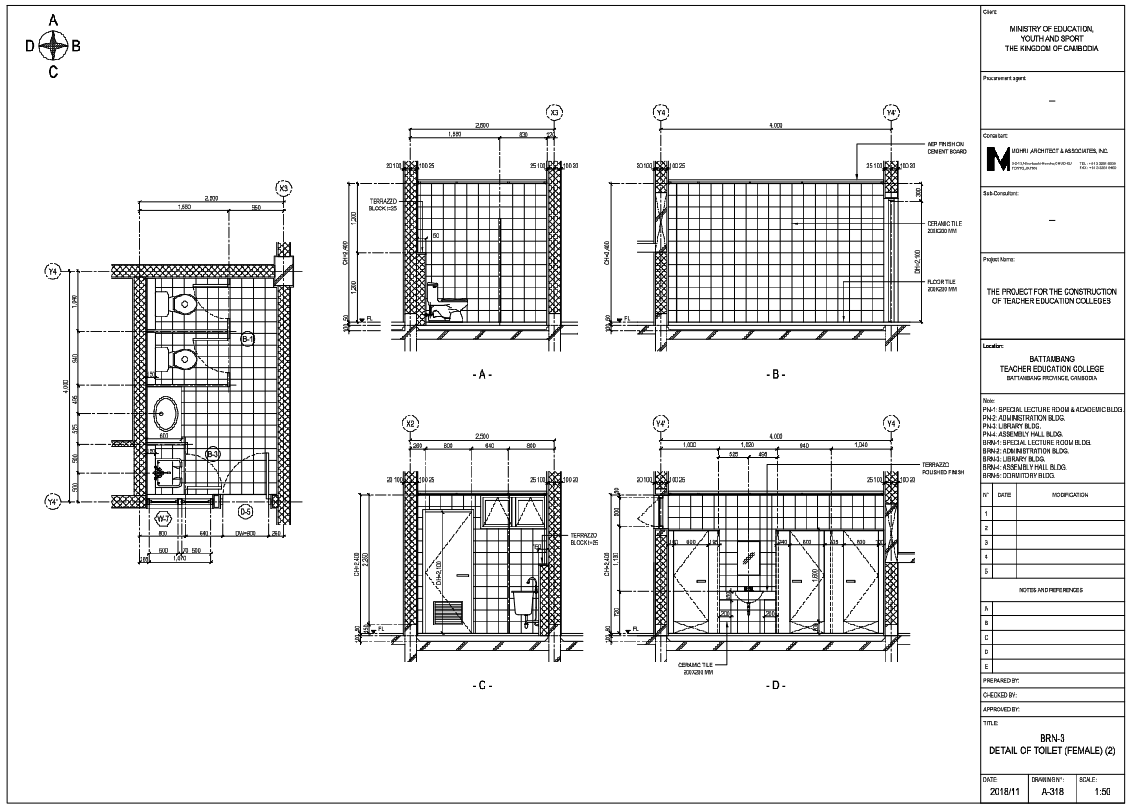

This AutoCAD drawing provides a comprehensive bathroom design layout for educational facilities. The detailed plan includes various elevations and sections, showcasing dimensions such as 2.5m x 4.0m for the restroom space. It features facilities like toilets, sinks, and additional plumbing elements with clear dimensions for each fixture. The design is suitable for educational buildings like colleges and schools, with proper room allocation for both male and female bathrooms. The layout also includes detailed tile specifications (ceramic tiles 200x200 mm), ensuring the bathroom space meets both aesthetic and functional needs. These CAD drawings are perfect for architects, civil engineers, and interior designers to ensure accurate implementation in construction projects. The drawings also specify materials used, including terrazzo blocks for flooring and ceramic tiles for walls, and can be referenced alongside modern dispensary layout plans to understand standardized healthcare facility planning, service coordination, and functional zoning.
