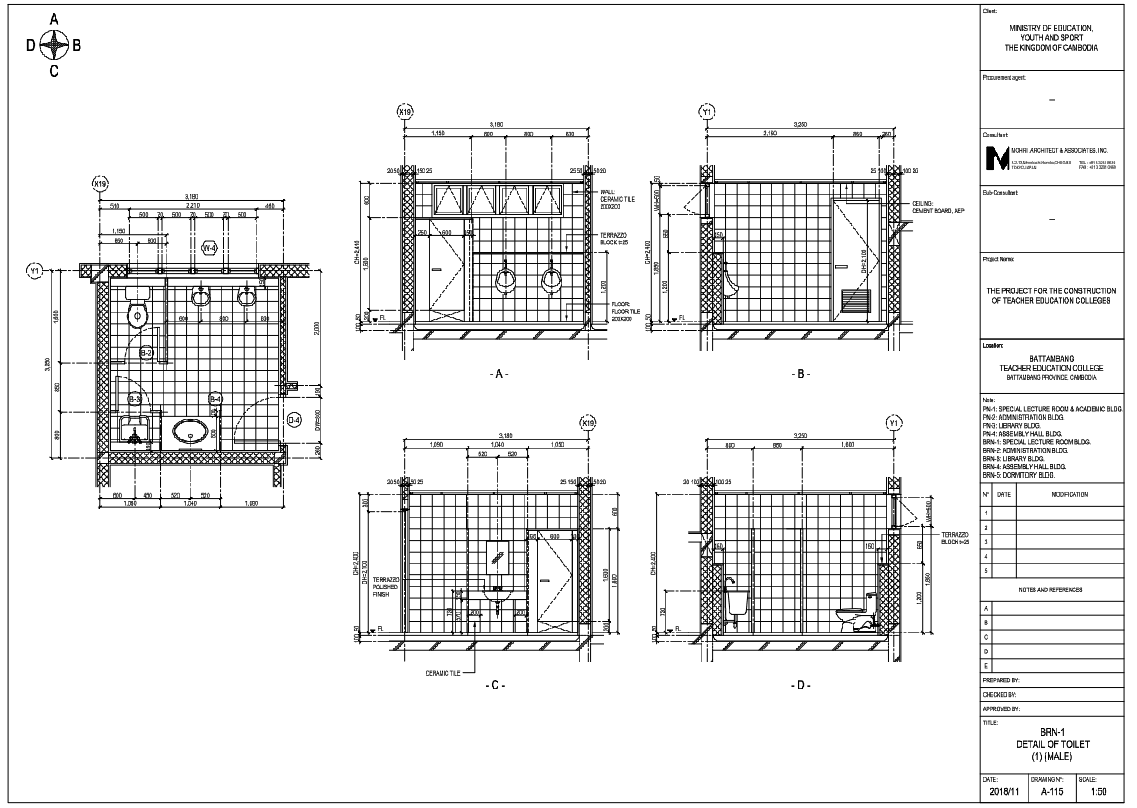

Male Toilet Layout Drawing with 3180x3250mm Sections and Tile Details

This AutoCAD drawing presents a detailed male toilet layout designed for institutional and educational buildings, prepared at a clear scale of 1:50. The plan includes a complete floor layout with clearly marked sanitary fixtures such as urinals, water closets, wash basins, and internal door positioning. Overall internal dimensions are approximately 3180 mm by 3250 mm, with precise spacing for circulation and usability. The drawing also shows door widths of 800 mm, clear height of 2100 mm, and ceiling heights around 2400 mm, making it suitable for architects and civil engineers planning standard public toilet facilities. Floor finishes are specified with 200x200 mm ceramic tiles, while terrazzo blocks of 25 mm thickness are detailed for durability. Wall tile heights and fixture alignments are clearly dimensioned for accurate execution on site.

In addition to the plan, the file includes multiple sectional views labeled A, B, C, and D, illustrating wall build-ups, ceramic tile finishes, terrazzo polished flooring, and ceiling construction using cement board. These sections clarify installation heights for urinals, wash hand basins, and partitions, along with plumbing and clearance requirements.
