Door, Window and Hardware Schedule Drawing with Sizes and Details

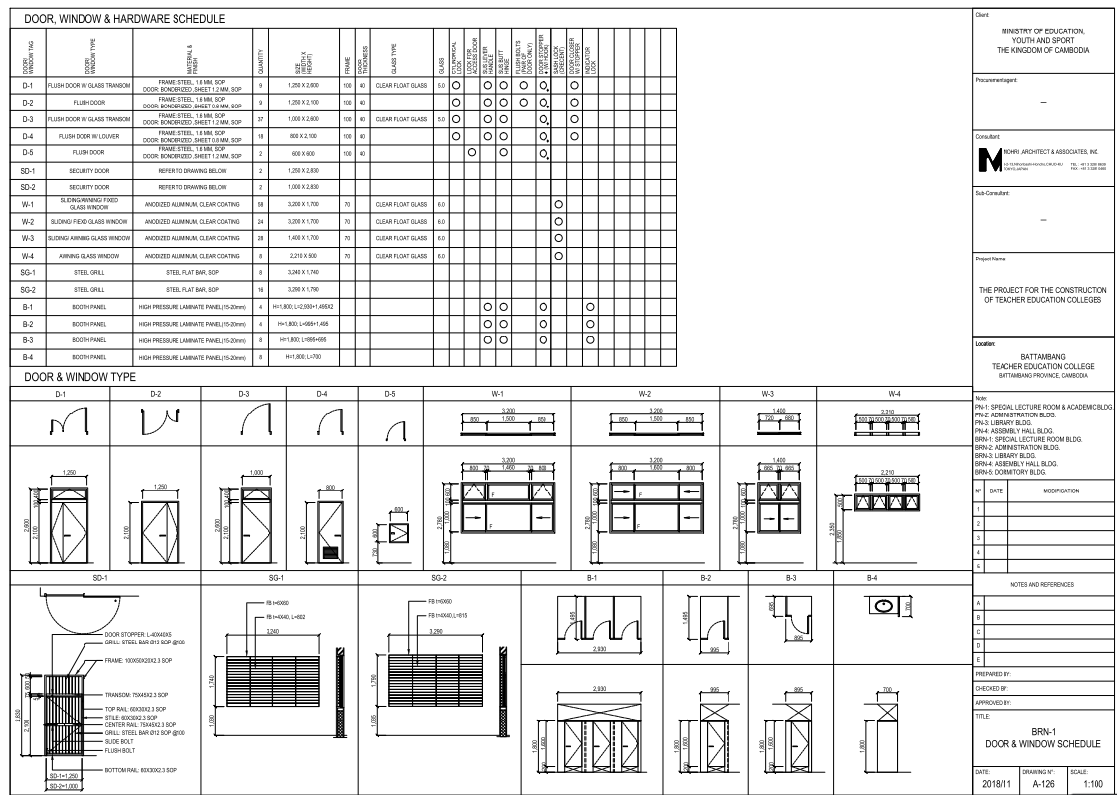

This AutoCAD DWG drawing provides a complete door, window, and hardware schedule prepared for institutional and commercial buildings. The drawing includes flush doors, flush doors with glass transom, louvered doors, security doors, sliding glass windows, swing windows, awning windows, and steel grill windows, all clearly coded from D1 to D5, SD1 to SD2, W1 to W4, SG1 to SG2, and B1 to B4. Door sizes such as 800 x 2100 mm, 1000 x 2100 mm, and 1200 x 2100 mm are detailed with frame thickness, shutter material, glass type, and hardware references. Window dimensions, including 1400 mm, 2100 mm, and 3200 mm widths, are shown with sill heights, glazing thickness, anodized aluminium frames, and clear float glass specifications. Steel grill windows include bar spacing, frame depth, and overall height references. Booth panel and folding door layouts show multi-shutter arrangements with opening widths up to 2930 mm and height references around 2400 mm. Hardware schedule tables define hinges, locks, stoppers, and fixing locations for accurate construction coordination
